| MODEL Galaxy 7G EU 10kw-48V | ||
| Battery Input Data | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 40V~64V | |
| Max. Charging Current (A) | 210A | |
| Max. Discharging Current (A) | 210A | |
| Charging Curve | 3 Stages / Equalization | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li–lon Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. DC Input Power(W) | 15000W | |
| PV input Voltage (V) | 600V | |
| MPPT Range (V) | 70V-540V | |
| Full Load DC Voltage Range | 125V~550V | |
| Start-up Voltage (V) | 90V | |
| PV input Current (A) | 30A+22A+22A | |
| Max. Short Circuit Current (A) | 40A+30A+30A | |
| No. of MPPT Trackers | 3 | |
| No. of Strings Per MPPT Tracker | 2+2+2 | |
| AC OUTPUT DATA | ||
| Rated AC Output and UPS Power(W) | 10000W | |
| Max. AC Output Power(W) | 11000W | |
| Peak Power (off-grid) | 2 times of rated power, 10S | |
| AC Output Rated Current(A) | 43.5A | |
| Max. AC Current(A) | 50A | |
| Max. Continuous AC Passthrough(A) | 66A | |
| Power Factor | > 0.99 @rated power (Adjustable 0.8 LD – 0.8 LG) | |
| Output Frequency and Voltage | 50/60Hz;220/230/240Vac (Single Phase) | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |
| EFFICIENCY | ||
| Max. Efficiency (BAT to AC) | 94.50% | |
| Euro Efficiency | 96.50% | |
| MPPT Efficiency (PV to AC) | 98.00% | |
| PROTECTION | ||
| DC Switch | Integrated | |
| Anti-island Protection | Integrated | |
| AC Over Current Protection | Integrated | |
| AC Over Voltage Protection | Integrated | |
| AC Short Circuit Protection | Integrated | |
| DC Reverse Protection | Integrated | |
| Leakage Current Protection | Integrated | |
| PV Insulation Detection | Integrated | |
| Surge Protection | DC Type ll / AC Type ll | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727,RD1699:2011, XP C15-712-3:2019-05 | |
| Safety Regulation | IEC62109-1, IEC62109-2 | |
| EMC | EN61000 | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | -25~60°C,>45°C Derating | |
| Cooling | Natural Cooling | |
| Max. Operation Altitude | 4000m(‘>2000m derating) | |
| Noise(dB) | ≤65 dB | |
| Display | LED+APP,LCD (Optional) | |
| Communication with BMS | RS485/CAN (for BMS), DRM/RS485 (for Meter), RS485 Optional: Wi-Fi/GPRS/LAN | |
| Weight (kg) | 37Kg | |
| Size (mm) | 420mm*800mm*240mm | |
| Protection Degree | Pure IP65 | |
| Installation Style | Wall-mounted | |
| Warranty | 5 Years/10 Years (Optional) | |
Complaint Registration: +91 9996116403
Customer Support: +91 9991116403
+91-9996146403
10:00AM - 6:00PM

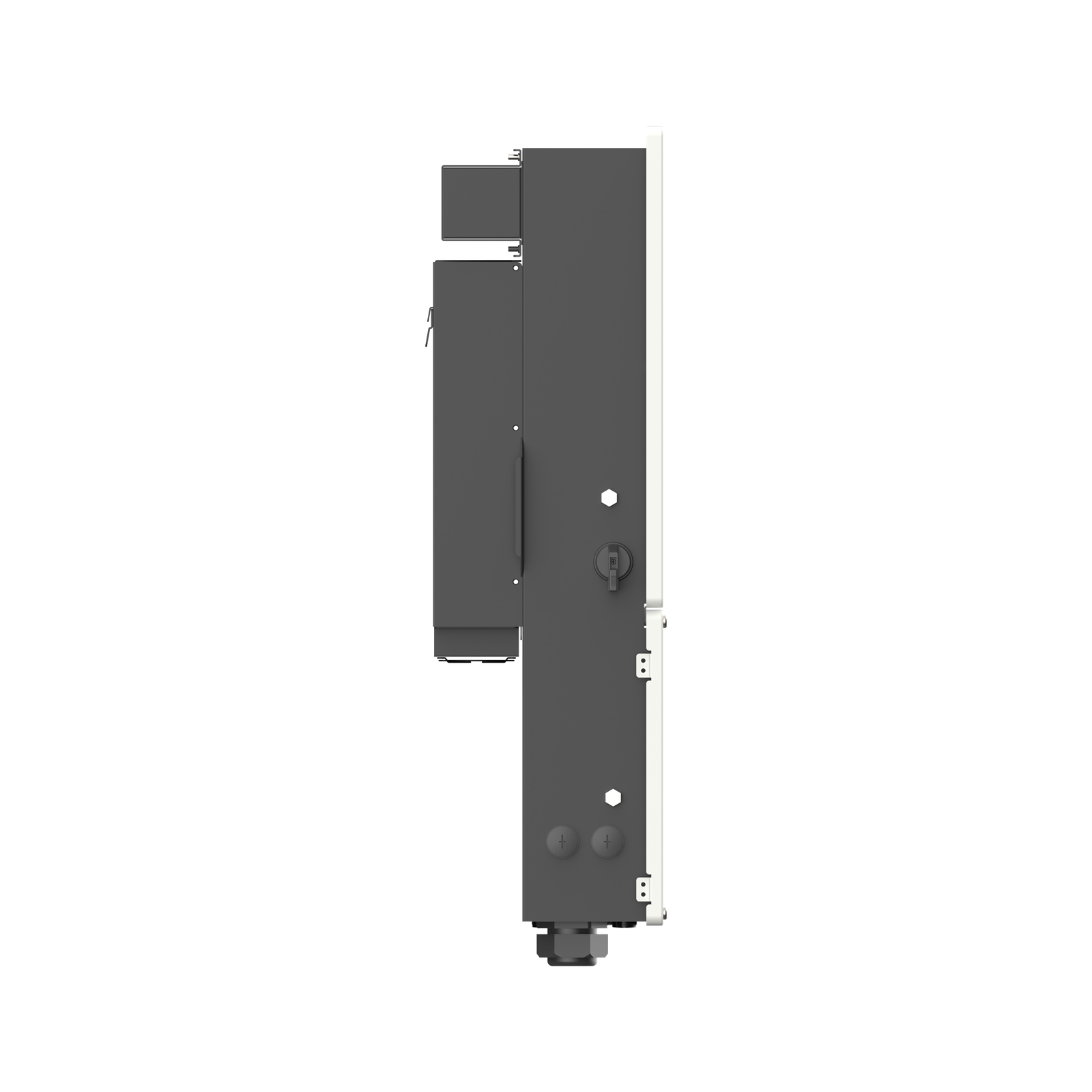

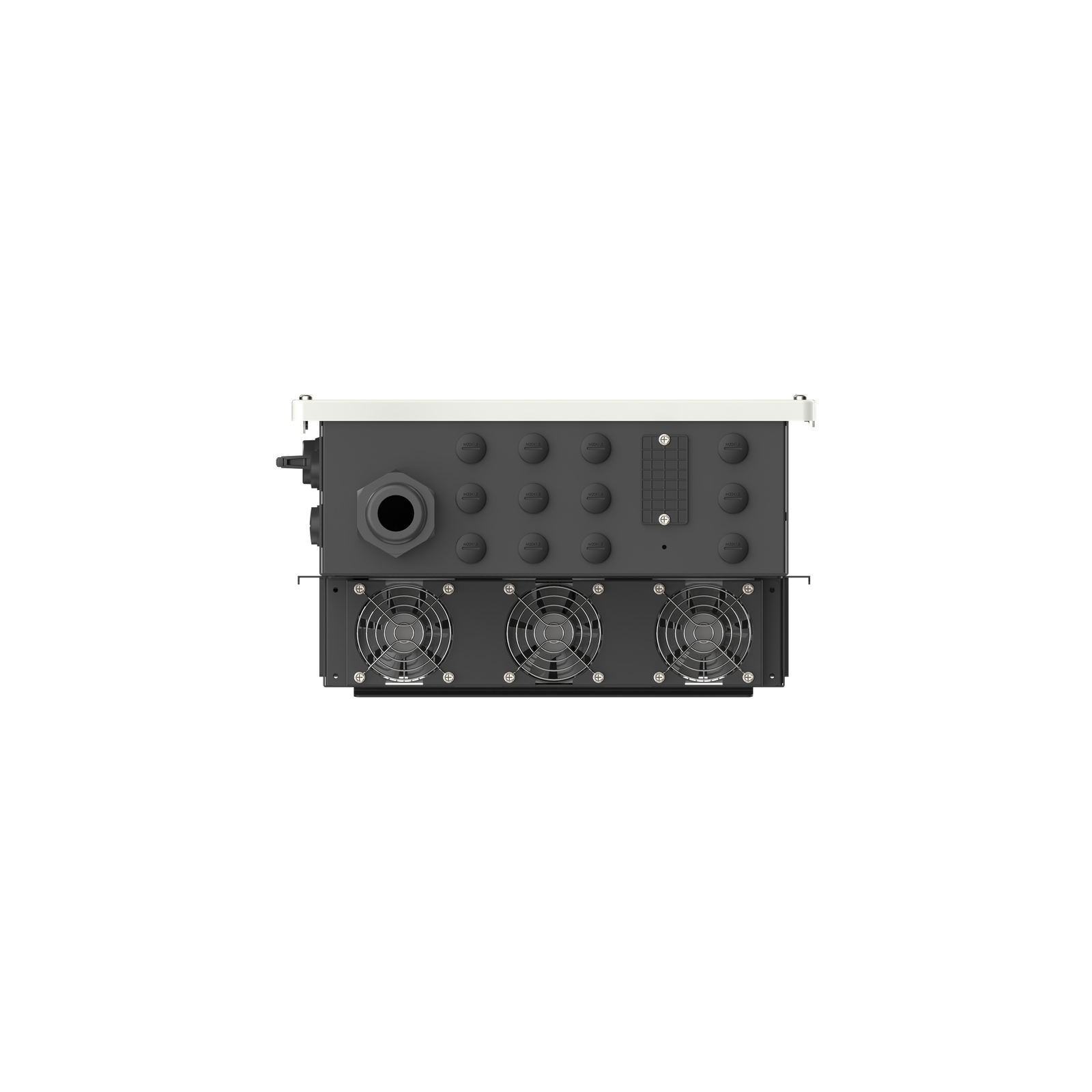

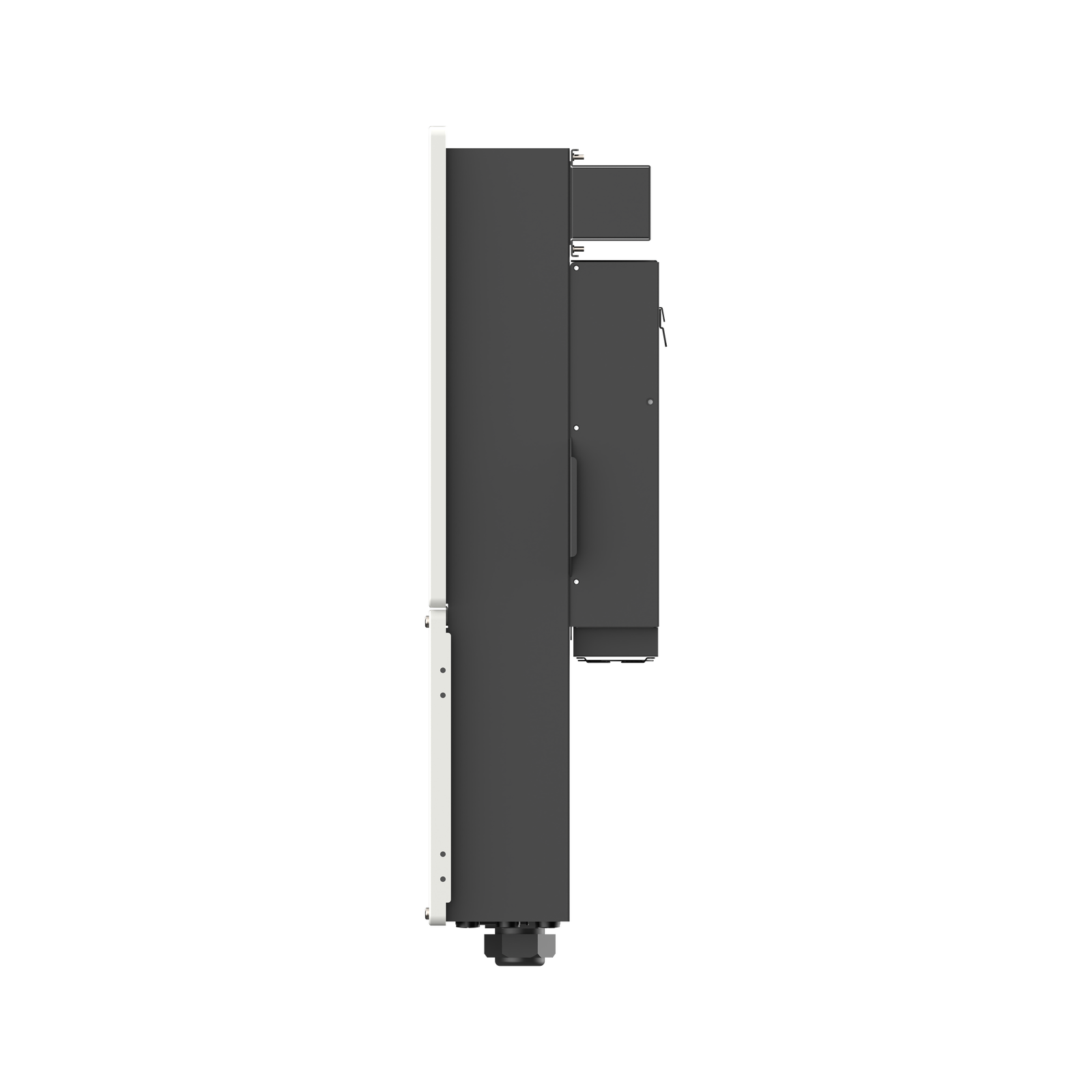

Galaxy 7G EU 10Kw Triple MPPT Hybrid Inverter
₹209,820.54 Exl GST
55 people are viewing this product right now
🔥 15 items sold in last 14 hours
The new Galaxy 7G is a milestone in technology. It is far ahead of any existing hybrid inverter technology in the world. It can handle continuous 10,000W output power. It comes with three 15,000W Super MPPTs with high PV voltage (70V~540v) for big PV operations. Due to this high voltage range and 30A current capacity PV installation is easy and fast. This inverter support all big panels available in the market.
Estimated delivery:October 4, 2023 - October 9, 2023
2 in stock
Compare
Please, enable Built-in Compare.
Your Payment is 100% Secure
| 1. | Pure sine wave output |
|---|---|
| 2. | Max. DC input power of 15000W (70V~540V), the DC/AC ratio of 1.3 |
| 3. | More higher charging and discharging power of 210A & 10000W. In off-grid mode, the peak instantaneous power is 20000W@10S. |
| 4. | Independent backup load port, don't need additional ATS device. |
| 5. | Built-in DG control interface, and support DG charges the battery ensuing the system works within 7*24H. |
| 6. | Compatible with all big solar panel recently in the market |
| 7. | 2 kinds of AC couple method to update existing solar system to energy storage system. |
| 8. | Support max. 10 units paralleled in single phase. |
| 9. | The “Time of use” function, supports charging and discharging the battery. |
| 10 | Adopt P/F & Q/V droop control to ensure micro system stable and reliable. |
| 11. | Advance LCD Screen and Button & Full inverter control via SolarTouch mobile app. |
| 12. | 5 year warranty and can be expendable up to 10 year. |
