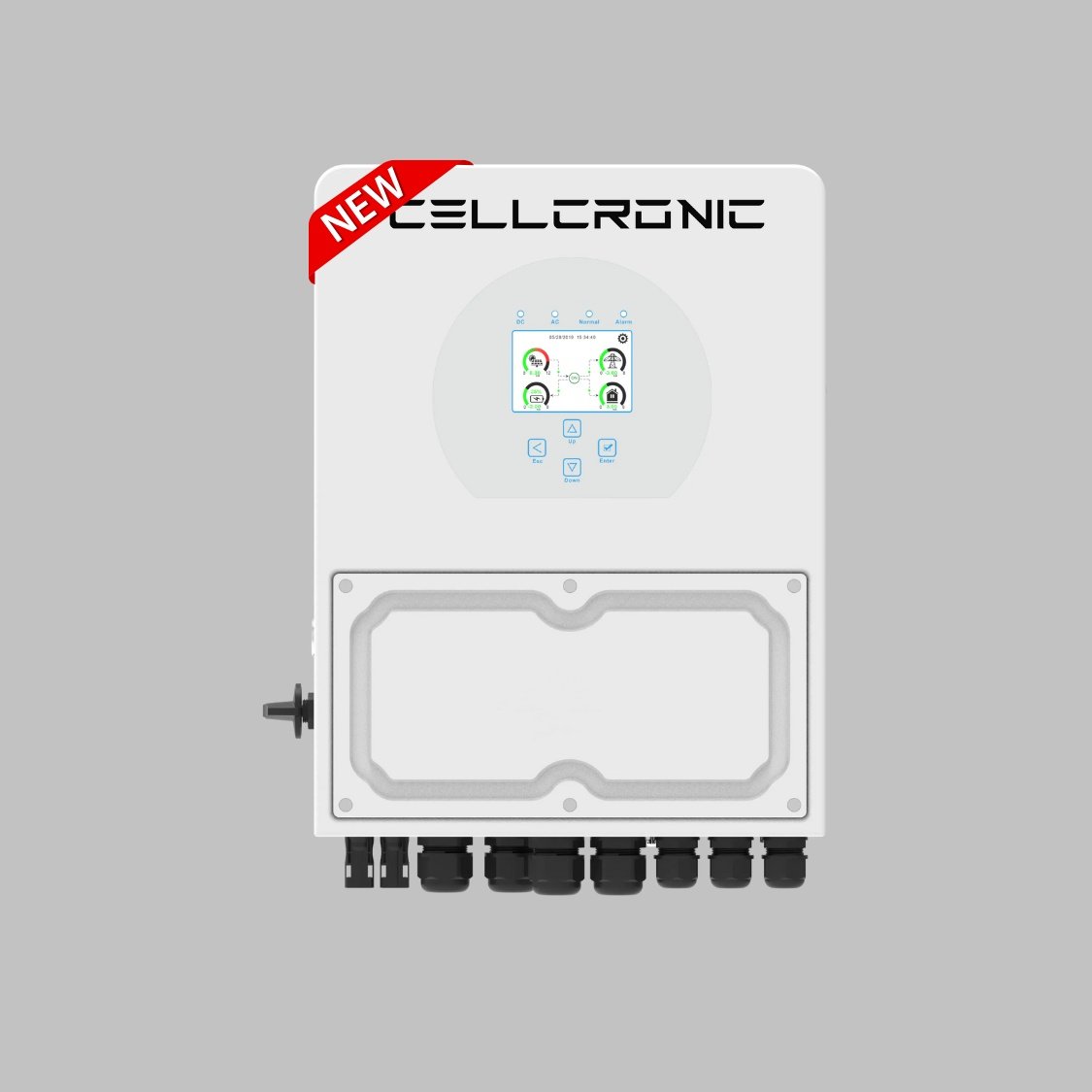

Galaxy 7G PRO 5Kw Dual MPPT Hybrid Inverter
₹124,999.11 Exl GST
Galaxy 7G is a 7th generation inverter technology. It comes with loaded accessories like Battery wire, ACDC box, CT sensor, Battery temperature sensor, and communication cables. It supports high PV voltage (120~425vdc) for easy PV installation. We can connect 16 inverters in parallel for a big operation.
Share
Hurry! only 2 left in stock.
Colorful touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
6500W Maximum Load Capacity & 9000W Solar Capacity.
6 time period for battery Charging/ discharging.
Max. Charging/discharging current of 135A
Support max. 16 units paralleled and three-phase application.
6 year warranty and can be expendable up to 10 year.
Also works with generators
Key Specifications & Features
- AC couple to retrofifit existing solar system
- Works as On- grid ans Off- Grid mode
- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 125V-425VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 15kg
- Inverter Dimension 433Wx330Hx238D
- 30 years design life.
| Model                                                             Galaxy 7G PRO-5Kw-48v | ||
| Battery Input Data | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 40~60V | |
| Max. Charging Current (A) | 135A | |
| Max. Discharging Current (A) | 135A | |
| Charging Curve | 3 Stages / Equalization | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li–ion Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. DC Input Power(W) | 9000W | |
| PV input Voltage (V) | 370V (100V-500V) | |
| MPPT Range (V) | 125~425V | |
| Full Load DC Volfage Range | 240~425V | |
| Start-up Voltage (V) | 125V | |
| PV input Current (A) | 18A+18A | |
| No. of MPPT Trackers | 2 | |
| No. of Strings Per MPPT Tracker | 1+1 | |
| AC OUTPUT DATA | ||
| Rated AC Output and UPS Power(W) | 6000W | |
| Max. AC Output Power(W) | 6500W | |
| Peak Power (off-grid) | 2 times of rated power, 10S | |
| AC Output Rated Current(A) | 27.3A | |
| Max. AC Current(A) | 30A | |
| Max. Continuous AC Passthrough(A) | 40A | |
| Power Factor | 0.8 leading to 0.8 lagging | |
| Output Frequency and Voltage | 50/60Hz;220/230/240Vac (Single Phase) | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |
| EFFICIENCY | ||
| Max. Efficiency | 97.60% | |
| Euro Efficiency | 96.50% | |
| MPPT Efficiency | 99.90% | |
| PROTECTION | ||
| PV Input Lightning Protection | Integrated | |
| Anti-island Protection | Integrated | |
| PV String Input Reverse Polarity Protection | Integrated | |
| Insulation Resistor Detection | Integrated | |
| Residual Current Monitoring Unit | Integrated | |
| Output Over Current Protection | Integrated | |
| Output Shorted Protection | Integrated | |
| Output Over Voltage Protection | Integrated | |
| Surge Protection | DC Type ll / AC Type ll | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727,RD1699:2011, XP C15-712-3:2019-05 | |
| SafetyRegulation | IEC62109-1, IEC62109-2 | |
| EMC | EN61000-6-1, EN61000-6-3 | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | -25~60°C,>45°C Derating | |
| Cooling | Smart Cooling | |
| Noise(db) | <30 db | |
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 15 | |
| Size (mm) | 433Wx330Hx238D | |
| Protection Degree | IP65 | |
| Installation Style | Well-mounted | |
| Warranty | 6 Years | |
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic provides a standard warranty of 1 Year on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
