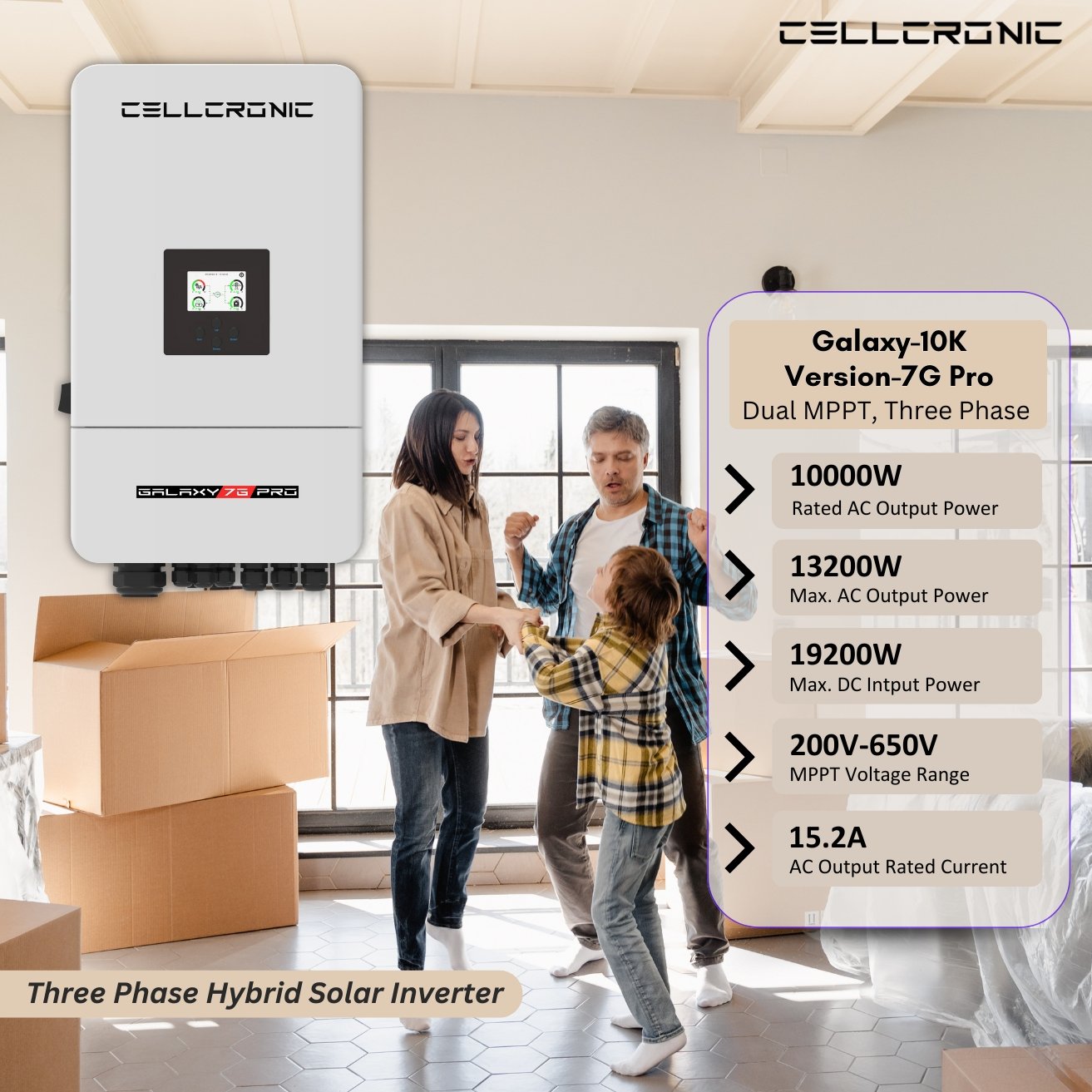

Galaxy-10K-Version-7G Pro 3P Dual Mppt Hybrid Solar Inverter
₹245,713.33 Exl GST
Galaxy 10K Version 7G PRO has 7th generation inverter technology. This is a 10Kw hybrid inverter but the load capacity is 13.2kw. Its solar capacity is 18Kw. It supports high PV voltage (160V~800VDC) for easy PV installation. We can connect 16 inverters in parallel for a larger operation. It comes with loaded accessories like battery wire, ACDC box, CT sensor, battery temperature sensor and communication cable.
Share
Celebrate Freedom with Power-Packed Discounts!
Starts from 14th August 2025, on Galaxy 6G EU 5Kw
3 in stock

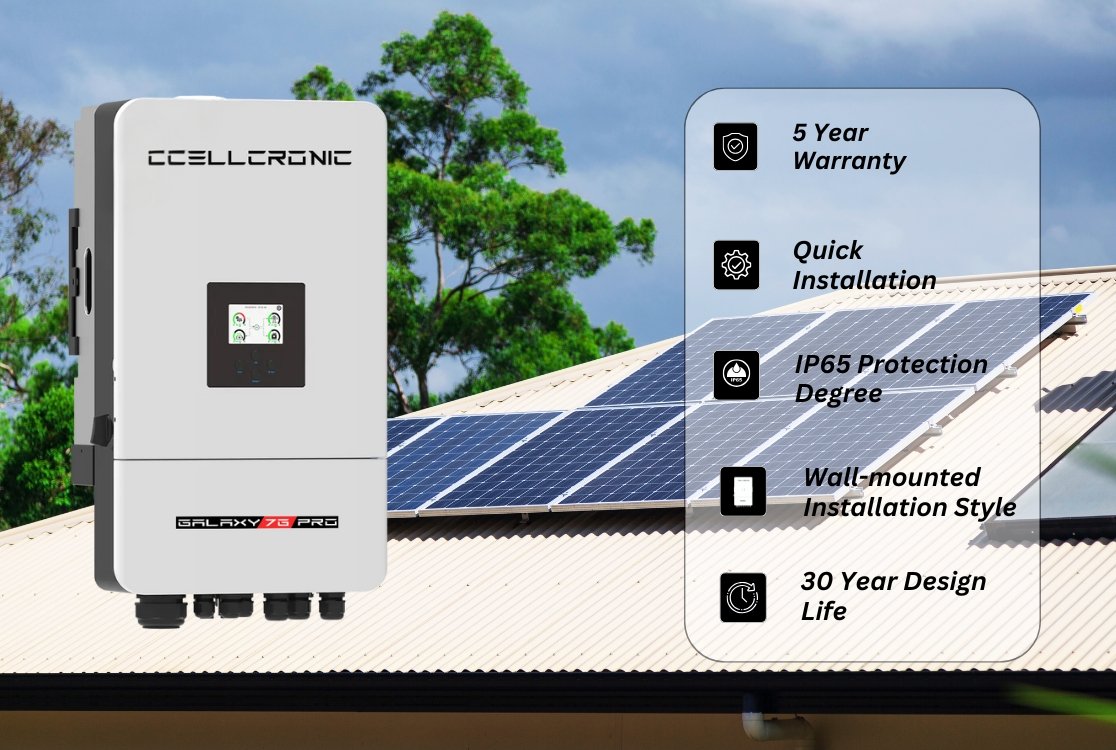

Colorful touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
13200W Maximum Load Capacity & 19200W Maximum Solar Capacity.
6 time period for battery Charging/ discharging.
Max. Charging/discharging current of 240A
Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
5 year warranty and can be expendable up to 10 year.
Also works with generators
Key Specifications & Features
- AC couple to retrofifit existing solar system
- Works as On- grid and Off- Grid mode

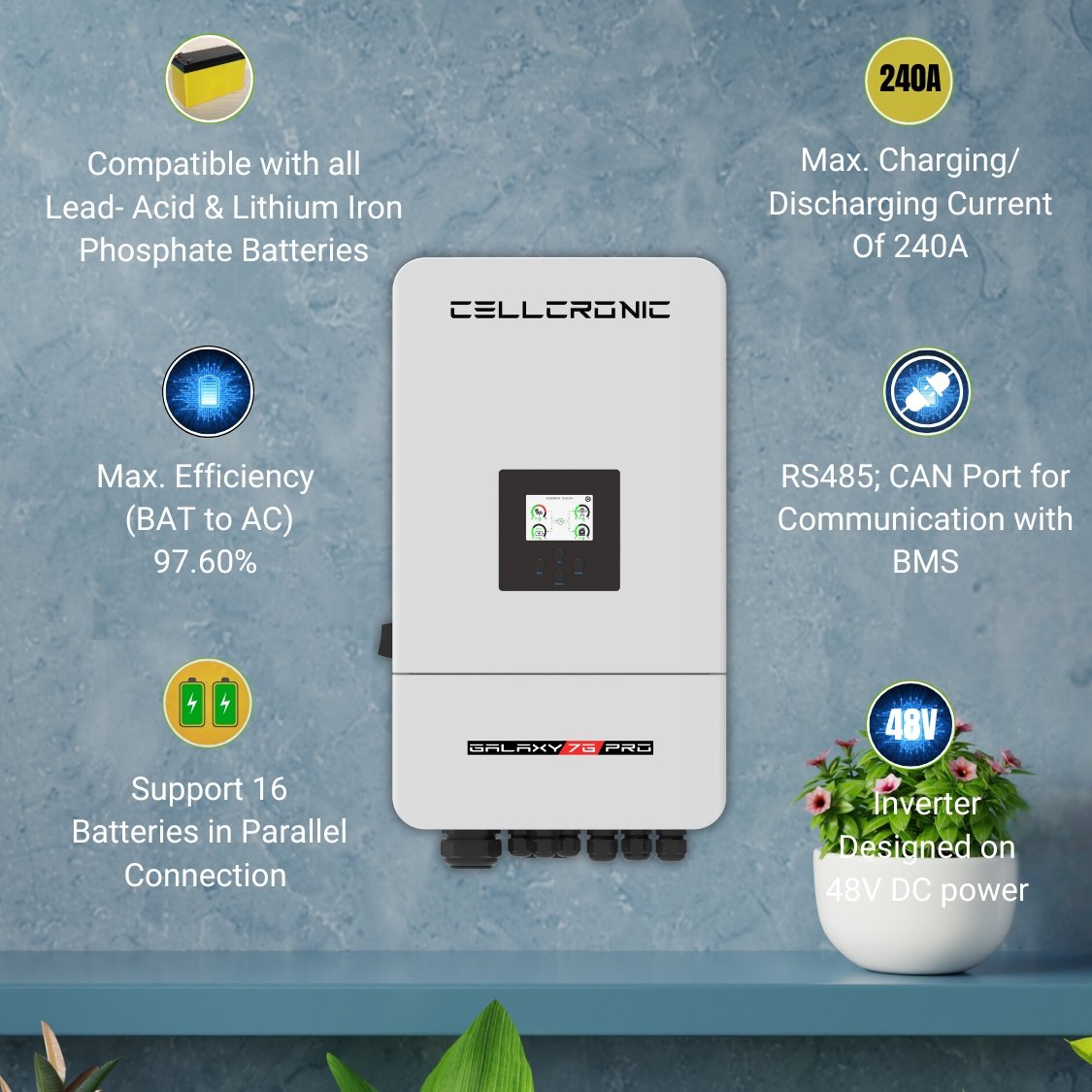

- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 160V-800VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 35.2kg

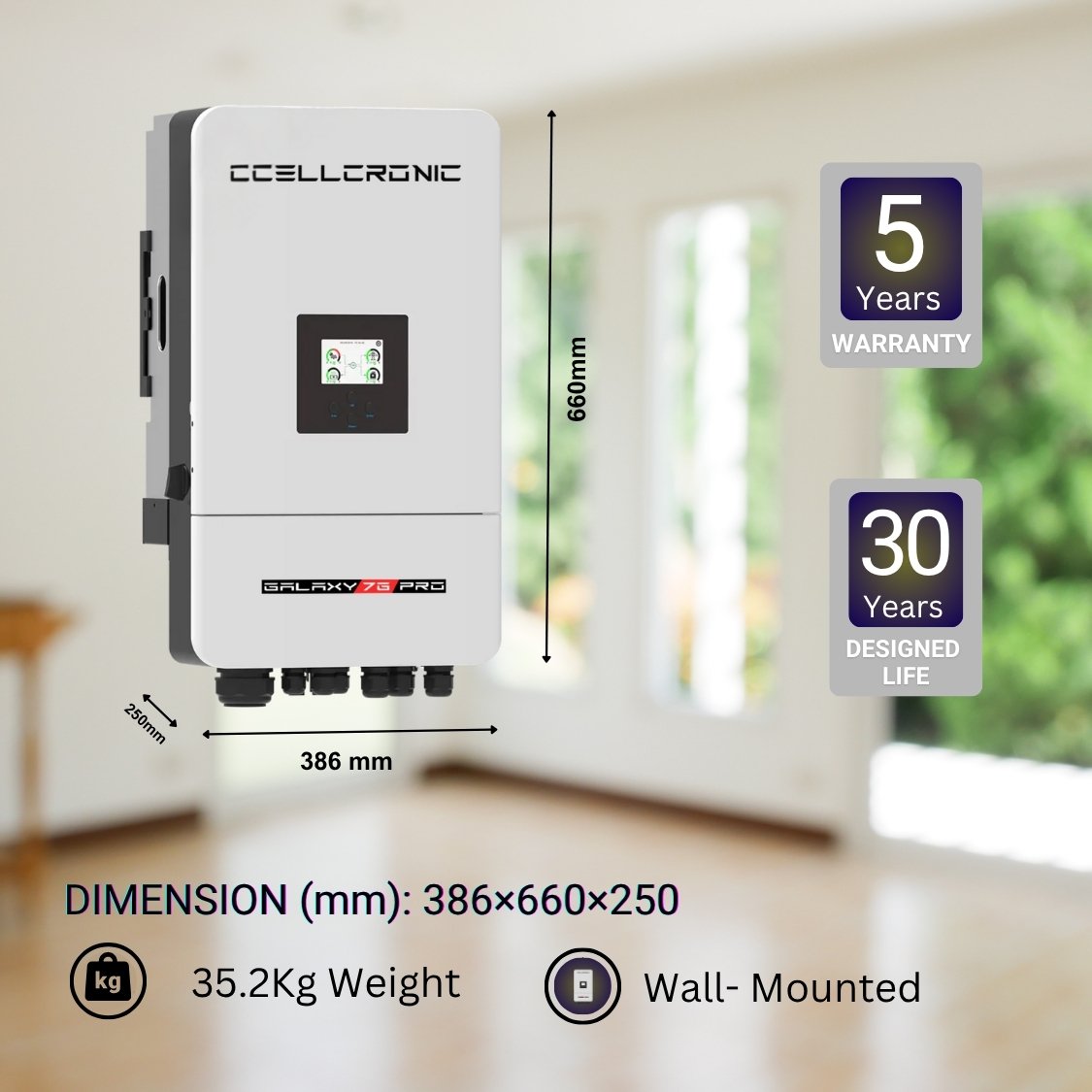

- Inverter Dimension 386W×660H×250D
- 30 years design life.
| Model | Galaxy-10K-Version-7G Pro 3P Dual Mppt Hybrid Solar Inverter | ||
| Battery Input Data | |||
| Battery Type | Lead–acid or Lithium–ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 240A | ||
| Max. Discharging Current (A) | 240A | ||
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Optional | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| PV STRING INPUT DATA | |||
| Max. DC Input Power(W) | 19200W | ||
| Max. PV input Voltage (V) | 800V | ||
| Start-up Voltage (V) | 160V | ||
| Mppt Voltage Range (V) | 200V-650V | ||
| Rated PV Input Voltage (V) | 550V | ||
| Max. Operating PV Input Current (A) | 26+26 | ||
| Max. Input Short-Circuit Current (A) | 39+39 | ||
| No. of Mppt Trackers | 2 | ||
| No. of String Mppt Tracker | 2+2 | ||
| AC OUTPUT DATA | |||
| Rated AC Input/Output Active Power (W) | 10000W | ||
| Max. AC Input/Output Apparent Power (W) | 13200W | ||
| Rated AC Input/Output Current (A) | 15.2/14.5 | ||
| Max. AC Input/Output Current (A) | 20/19.2 | ||
| Max. Continuous AC Passthrough (grid to load) (A) | 45A | ||
| Peak Power (off grid) | 2 time of rated power, 10 S | ||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
| Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | ||
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 | ||
| Grid Connection Form | 3L+N+PE | ||
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | ||
| DC Injection Current | <0.5% In | ||
| Grid Type | Three Phase | ||
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | ||
| EFFICIENCY | |||
| Max. Efficiency | 97.6% | ||
| Euro Efficiency | 97.0% | ||
| MPPT Efficiency | >99% | ||
| PROTECTION | |||
| PV Arc Fault Detection | Integrated(Except European Type) | ||
| PV Input Lightning Protection | Integrated | ||
| Anti-island Protection | Integrated | ||
| PV String Input Reverse Polarity Protection | Integrated | ||
| Insulation Resistor Detection | Integrated | ||
| Residual Current Monitoring Unit | Integrated | ||
| Output Over Current Protection | Integrated | ||
| Output Shorted Protection | Integrated | ||
| Output Over Voltage Protection | Integrated | ||
| Surge Protection | TYPE II(DC), TYPE II(AC) | ||
| CERTIFICATION AND STANDARDS | |||
| Grid Regulation | IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25,G98, G99,VDE-AR-N 4105 | ||
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
| GENERAL DATA | |||
| Operating Temperature Range(°C) | -40 to +60℃, >45℃ Derating | ||
| Permissible Ambient Humidity | 0-100% | ||
| Permissible Altitude | 3000m | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC), OVC III(AC) | ||
| Type of Cooling | Intelligent Air Cooling | ||
| Noise (dB) | ≤55 | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 35.2Kg | ||
| Cabinet Size (WxHxD mm) | 386×660×250 (Excluding Connectors and Brackets) | ||
| Ingress Protection(IP) Rating | IP65 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty | ||
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic offers 2 to 6 years warranty on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
