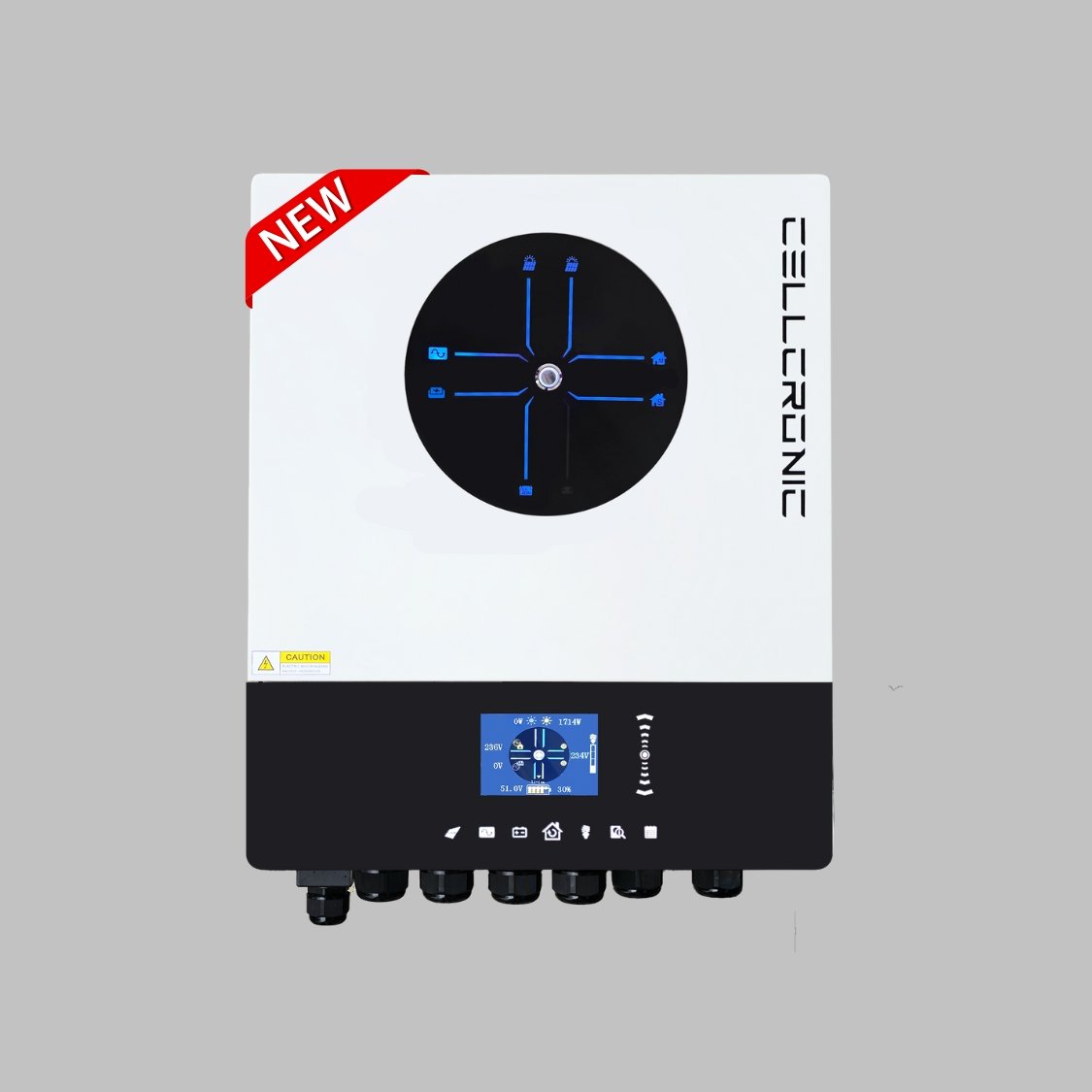

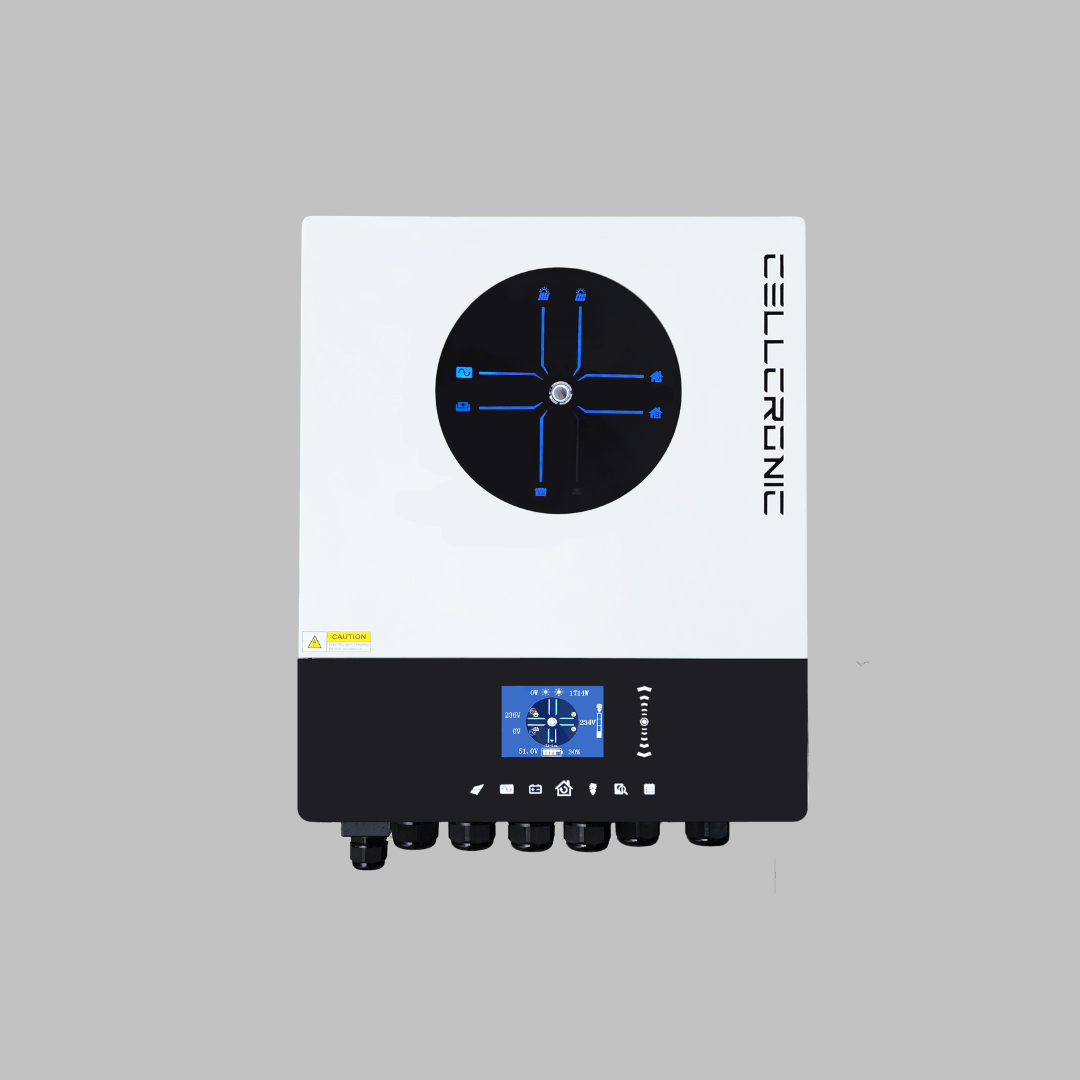

Galaxy 10K Version Eco Pro Plus Single Phase Hybrid Inverter
₹142,856.25 Exl GST
Galaxy 10K Version Eco Pro Plus is Hybrid inverter technology. It comes with loaded accessories like Battery wire, ACDC box, CT sensor, Battery temperature sensor, SPD, DC voltage Protection Device and communication cables. It supports high PV voltage (150~450vdc) for easy PV installation. We can connect 6 inverters in parallel for a big operation. Its Load Capacity is 11 Kw ans Solar Capacity 15KW.
Share
Celebrate Freedom with Power-Packed Discounts!
Starts from 14th August 2025, on Galaxy 6G EU 5Kw
2 in stock
Colorful LCD Screen, IP20 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
11,000W Maximum Load Capacity & 15,000W Solar Capacity.
Compatibe with Leasd acid and Lithium Iron Phosphate Battery
Max. Charging/discharging current of 210A
Max. 06pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
2 Years Warranty
Also works with generators
Key Specifications & Features
- AC couple to retrofifit existing solar system
- Works as On- grid and Off- Grid mode
- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 150V-450VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 18.2kg
- Inverter Dimension 145D*438W*553.6H
- 20 years design life.
| Model | Galaxy 10K Version Eco Pro Plus Single Phase Hybrid Inverter | ||
| Battery Input Data | |||
| Battery Type | Lead–acid or Lithium–ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 210A | ||
| Max. Discharging Current (A) | 210A | ||
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Optional | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| PV STRING INPUT DATA | |||
| Max. DC Input Power(W) | 15000W | ||
| PV input Voltage (V) | 500 | ||
| MPPT Range (V) | 150V-450V | ||
| Start-up Voltage (V) | 125 | ||
| Rated PV Input Voltage (V) | 370 V | ||
| Max. Operating PV Input Current (A) | 27A+27A | ||
| Max. Input Short-Circuit Current (A) | 40A+40A | ||
| No. of MPPT Trackers | 2 | ||
| No. of Strings Per MPPT Tracker | 1+1 | ||
| AC INPUT/ OUTPUT DATA | |||
| Rated AC Input/Output Active Power（W） | 10,000W | ||
| Max AC Input/Output Apparent Power （VA） | 11,000W | ||
| Peak Power (off-grid) | 2 times of rated power, 10S | ||
| Rated AC Input/Output Current（A） | 44A | ||
| Max AC Input/Output Current (A） | 48A | ||
| Max. Continuous AC Passthrough(A) | 50A | ||
| Output Frequency and Voltage | 50/60Hz;230/220/230 0.85Un-1.1Un (Single Phase) | ||
| Grid Type | Single Phase | ||
| Current Harmonic Distortion | <3% (of nominal power) | ||
| EFFICIENCY | |||
| Max. Efficiency | 97.6% | ||
| Euro Efficiency | 96.5% | ||
| MPPT Efficiency | >99% | ||
| PROTECTION | |||
| DC Polarity Reverse Connection Protection | Integrated | ||
| AC Output Overcurrent Protection | Integrated | ||
| Thermal Protection | Integrated | ||
| AC Output Overvoltage Protection | Integrated | ||
| AC Output Short Circuit Protection | Integrated | ||
| DC Component Monitoring | Integrated | ||
| Overvoltage Load Drop Protection | Integrated | ||
| Island Protection Monitoring, Earth Fault Detection | Integrated | ||
| DC Input Switch | Integrated | ||
| DC Terminal Insulation Impedance Monitoring | Integrated | ||
| Residual Current (RCD) Detection | Integrated | ||
| Surge Protection | DC Type ll / AC Type ll | ||
| CERTIFICATION AND STANDARDS | |||
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | ||
| Safety Regulation | IEC/EN 61000-6-1/2/3/4 | ||
| EMC | IEC/EN 62109-1, IEC/EN 62109-2 | ||
| GENERAL DATA | |||
| Operating Temperature Range(°C) | -10 to +50℃, >45℃ Derating | ||
| Cooling | Fan Cooling | ||
| Permissible Ambient Humidity | 0~100% | ||
| Permissible Altitude | 2000m | ||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
| Noise(dB) | <45 | ||
| Communication with BMS | USB/RS485/RS232/CAN/Dry-Contact | ||
| Weight (kg) | 18.4 Kg | ||
| Size (D*W*H mm) | 145*438*553.6 (Excluding Connectors and Brackets) | ||
| Protection Degree | IP20 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 2 Years Standard | ||
