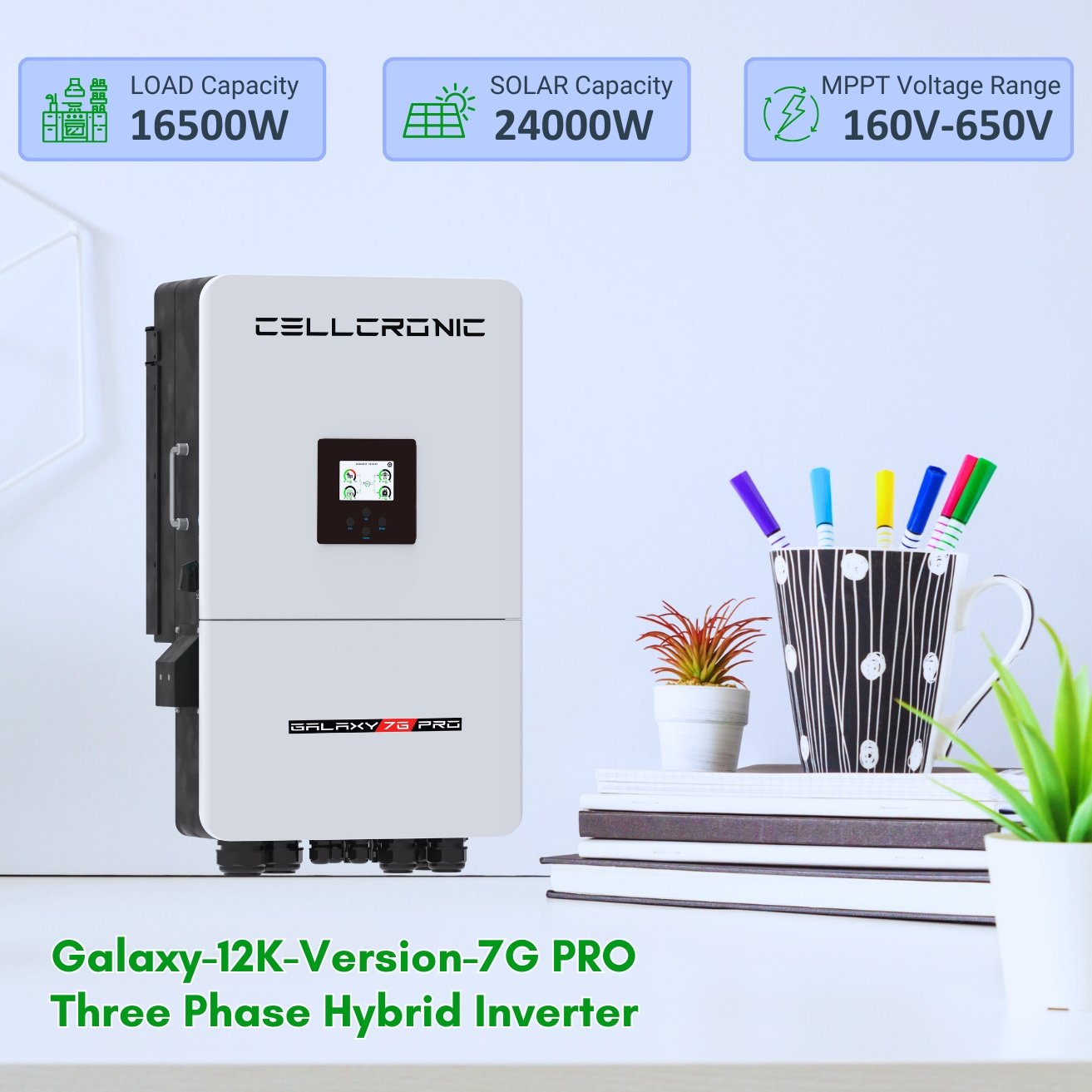

Galaxy-12K-Version-7G PRO Three Phase Dual MPPT Hybrid Solar Inverter
₹281,903.81 Exl GST
Galaxy 12K Version 7G PRO has 7th generation inverter technology. This is a 12Kw hybrid inverter but the load capacity is 16.5kw. Its solar capacity is 24Kw. It supports high PV voltage (160V~650vdc) for easy PV installation. We can connect 10 inverters in parallel for a larger operation. It comes with loaded accessories like battery wire, ACDC box, CT sensor, battery temperature sensor and communication cable.
Celebrate Freedom with Power-Packed Discounts!
Starts from 14th August 2025, on Galaxy 6G EU 5Kw
4 in stock
Colorful touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
16500W Maximum Load Capacity & 24000W Solar Capacity.
6 time period for battery Charging/ discharging.
Max. Charging/discharging current of 280A
Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
5 year warranty and can be expendable up to 10 year.
Also works with generators
Key Specifications & Features
- AC couple to retrofit existing solar system
- Works as On- grid and Off- Grid mode
- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 160V-650V
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 51.9kg
- Inverter Dimension 456W×750H×268.5D (Excluding Connectors and Brackets)
- 25 years design life.
| Model | Galaxy-12K-Version-7G PRO 3P Dual MPPT Hybrid Solar Inverter | ||
| Battery Input Data | |||
| Battery Type | Lead–acid or Lithium–ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 280A | ||
| Max. Discharging Current (A) | 280A | ||
| Charging Curve | 3 Stages / Equalization | ||
| Number of Battery Input | 1 | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| PV STRING INPUT DATA | |||
| Max. DC Input Power(W) | 24000W | ||
| Max. PV input Voltage (V) | 800V | ||
| MPPT Voltage Range (V) | 160V-650V | ||
| Start-up Voltage (V) | 160V | ||
| Rated PV Input Voltage (V) | 550V | ||
| Max. Operating PV Input Current (A) | 36+36 | ||
| Max. Input Short-Circuit Current (A) | 54+54 | ||
| No. of MPPT Trackers | 2 | ||
| No. of Strings Per MPPT Tracker | 2+2 | ||
| AC OUTPUT DATA | |||
| Rated AC Input/Output Active Power (W) | 12000W | ||
| Max. AC Input/Output Apparent Power (VA) | 16500W | ||
| Peak Power (off-grid) | 2 times of rated power, 10S | ||
| Rated AC Input/Output Current (A) | 18 | ||
| Max. AC Input/Output Current (A) | 24 | ||
| Max. Continuous AC Passthrough (grid to load) (A) | 70A | ||
| Output Frequency and Voltage | 50/45-55Hz; 220/380V, 230/400V 0.85Un-1.1Un | ||
| Grid Connection Form | 3L+N+PE (Three Phase) | ||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
| Current Harmonic Distortion | <3% (of nominal power) | ||
| DC Injection Current | <0.5% In | ||
| EFFICIENCY | |||
| Max. Efficiency | 97.60% | ||
| Euro Efficiency | 97.00% | ||
| MPPT Efficiency | 99.90% | ||
| PROTECTION | |||
| DC Polarity Reverse Connection Protection | Integrated(Except European Type) | ||
| AC Output Overcurrent Protection | Integrated | ||
| AC Output Overvoltage Protection | Integrated | ||
| AC Output Short Circuit Protection | Integrated | ||
| Thermal Protection | Integrated | ||
| DC Terminal Insulation Impedance Monitoring | Integrated | ||
| DC Component Monitoring | Integrated | ||
| Ground Fault Current Monitoring Power Network Monitoring | Integrated | ||
| Island Protection Monitoring | Integrated | ||
| Earth Fault Detection | Integrated | ||
| DC Input Switch Overvoltage Load Drop Protection | Integrated | ||
| Residual Current (RCD) Detection | Integrated | ||
| Surge protection level | Integrated | ||
| Surge Protection | TYPE II(DC), TYPE II(AC) | ||
| CERTIFICATION AND STANDARDS | |||
| Grid Regulation | IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99,VDE-AR-N 4105 | ||
| Safety Regulation | IEC/EN 61000-6-1/2/3/4 | ||
| EMC | IEC/EN 62109-1, IEC/EN 62109-2 | ||
| GENERAL DATA | |||
| Operating Temperature Range(°C) | -40 to +60℃, >45℃ Derating | ||
| Cooling | Intelligent Air Cooling | ||
| Noise(dB) | ≤60 dB | ||
| Inverter Topology | Non-Isolated | ||
| Permissible Ambient Humidity | 0-100% | ||
| Permissible Altitude | 3000m | ||
| Over Voltage Category | OVC II(DC), OVC III(AC) | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 51.9 Kg | ||
| Cabinet Size (WxHxD mm) | 456×750×268.5 (Excluding Connectors and Brackets) | ||
| Protection Degree | IP65 | ||
| Installation Style | Well-mounted | ||
| Warranty | 5 Years/10 Years | ||
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic offers 2 to 6 years warranty on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
