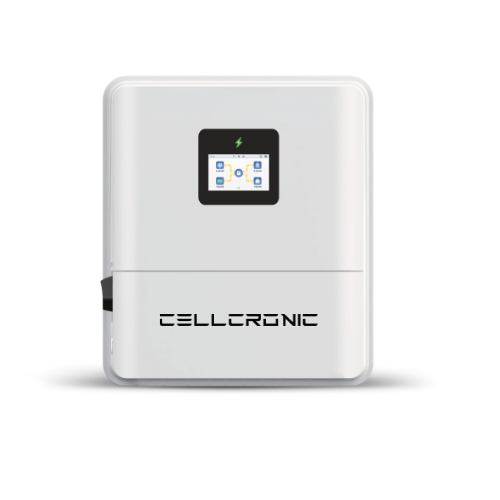

Galaxy-5K Version-Delta Pro Dual MPPT Single Phase Hybrid Inverter
₹89,284.82 Exl GST
Cellcronic Delta Pro Hybrid Inverter is a high-performance energy solution designed for modern homes and businesses. It efficiently combines solar, battery, and grid power to ensure uninterrupted electricity supply. With advanced technology, it delivers maximum power conversion and smart energy management. The inverter supports high solar capacity, making it ideal for sustainable and cost-saving operations. Backed by strong durability and warranty, Delta Pro is a reliable choice for long-term energy independence.
Share
Celebrate Freedom with Power-Packed Discounts!
Starts from 14th August 2025, on Galaxy 6G EU 5Kw
5 in stock
Colorful touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
6600W Maximum Load Capacity & 10000W Solar Capacity.
6 time period for battery Charging/ discharging.
Max. Charging/discharging current of 135A
Support max. 16 units paralleled and three-phase application.
2 year warranty and can be expendable up to 5 year.
Also works with generators
Key Specifications & Features
- AC couple to retrofifit existing solar system
- Works as On- grid ans Off- Grid mode
- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 70V-540VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 16kg
- Inverter Dimension 367mm*421mm*215mm
- 25 years design life.
| Model Galaxy-5K Version-Delta Pro Dual MPPT Hybrid Inverter | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 40~60V | |
| Max. Charging Current (A) | 135A | |
| Max. Discharging Current (A) | 135A | |
| Charging Curve | 3 Stages / Equalization | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li–ion Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. DC Input Power(W) | 10,000W | |
| Max PV Input Voltage (V） | 500V | |
| Start-up Voltage（V） | 90V | |
| MPPT Voltage Range（V） | 70V-540V | |
| Rated PV Input Voltage(V) | 370V | |
| Max. PV Input Current (A) | 18A+18A | |
| Max. Short-Circuit Current (A) | 25A+25A | |
| No. of MPPT Trackers | 2 | |
| No. of Strings Per MPPT Tracker | 1+1 | |
| AC INPUT/OUTPUT DATA | ||
| Rated AC Input/Output Active Power（W） | 5000W | |
| Max AC Input/Output Apparent Power （VA） | 6600W | |
| Peak Power (off-grid) (W) | 2 times of rated power, 10S | |
| Rated AC Input/Output Current(A) | 22.8/21.8 | |
| Max AC Input/Output Current（A) | 28.7 | |
| Max. Input Power From Grid | 9,000W | |
| Max. Continuous AC Passthrough(A) | 41A | |
| Power Factor Adjustment Range | > 0.99 @rated power (Adjustable 0.8 LD – 0.8 LG) | |
| Grid Voltage Range | 150V-300V (Adjustable) | |
| Rated Input/Output Grid Frequency/Range(Hz) | 45Hz-55Hz/55Hz-65Hz (Adjustable) | |
| Rated Grid Voltage (V) | 220V/230 0.85Un-1.1Un | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |
| EFFICIENCY | ||
| Max. Efficiency | 97.30% | |
| Euro Efficiency | 96.80% | |
| MPPT Efficiency | 99.90% | |
| PROTECTION | ||
| DC Polarity Reverse Connection Protection | Integrated | |
| AC Output Overcurrent Protection | Integrated | |
| Thermal Protection | Integrated | |
| AC Output Overvoltage Protection | Integrated | |
| AC Output Short Circuit Protection | Integrated | |
| DC Component Monitoring | Integrated | |
| Overvoltage Load Drop Protection | Integrated | |
| Island Protection Monitoring, Earth Fault Detection | Integrated | |
| DC Input Switch | Integrated | |
| DC Terminal Insulation Impedance Monitoring | Integrated | |
| Residual Current (RCD) Detection | Integrated | |
| Surge Protection | DC Type ll / AC Type ll | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105 | |
| Safety Regulation | IEC/EN 61000-6-1/2/3/4, | |
| Safety EMC/Standard | IEC/EN 62109-1, IEC/EN 62109-2 | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | -25 to +60℃, >45℃ Derating | |
| Cooling | Natural Cooling | |
| Noise(db) | <30 db | |
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 16 Kg | |
| Size (W*H*D GLmm) | 367mm*421mm*215mm | |
| Protection Degree | IP65 | |
| Installation Style | Well-mounted | |
| Warranty | 2 Years Standard Warranty Expendable up to 5 Years | |
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic offers 2 to 6 years warranty on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
