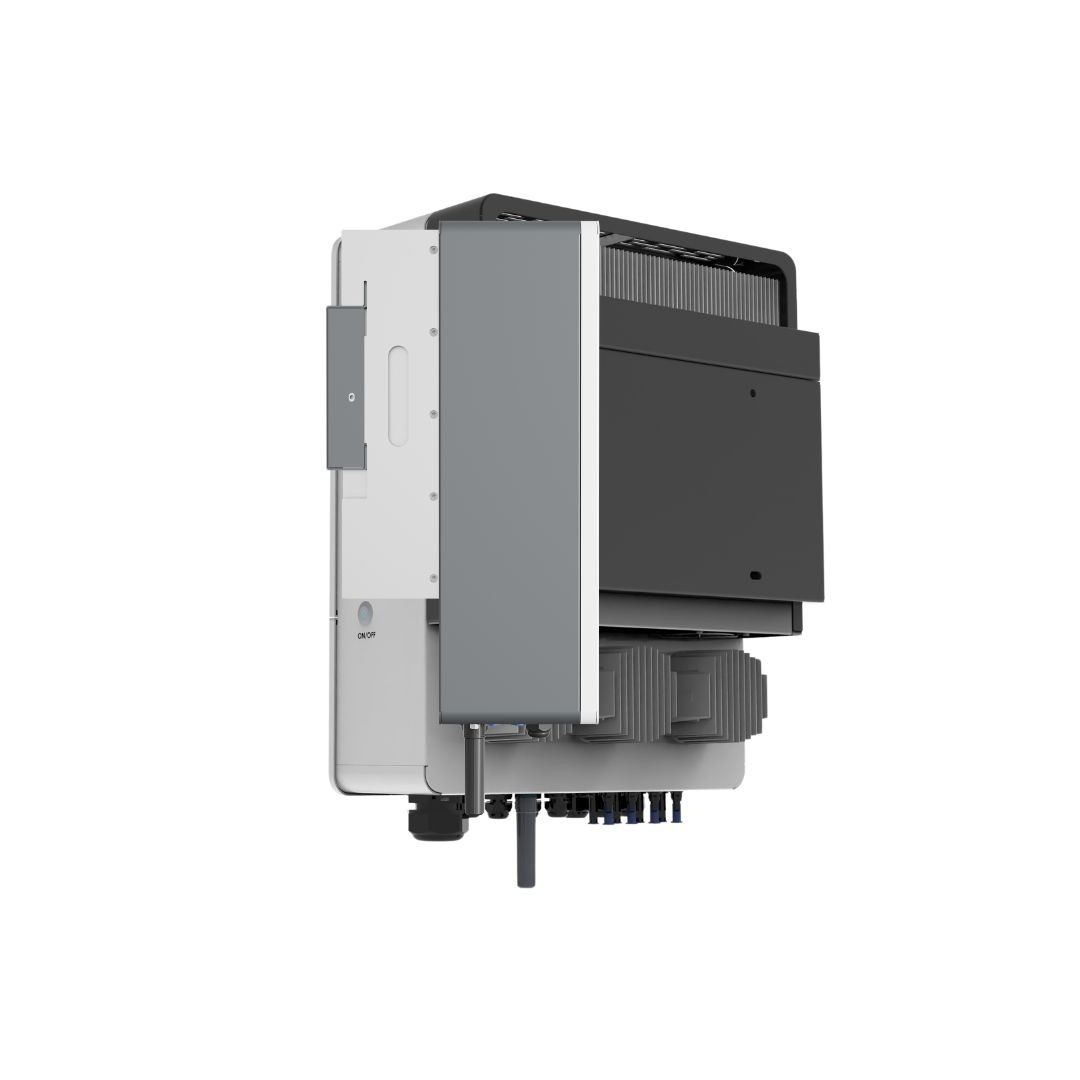

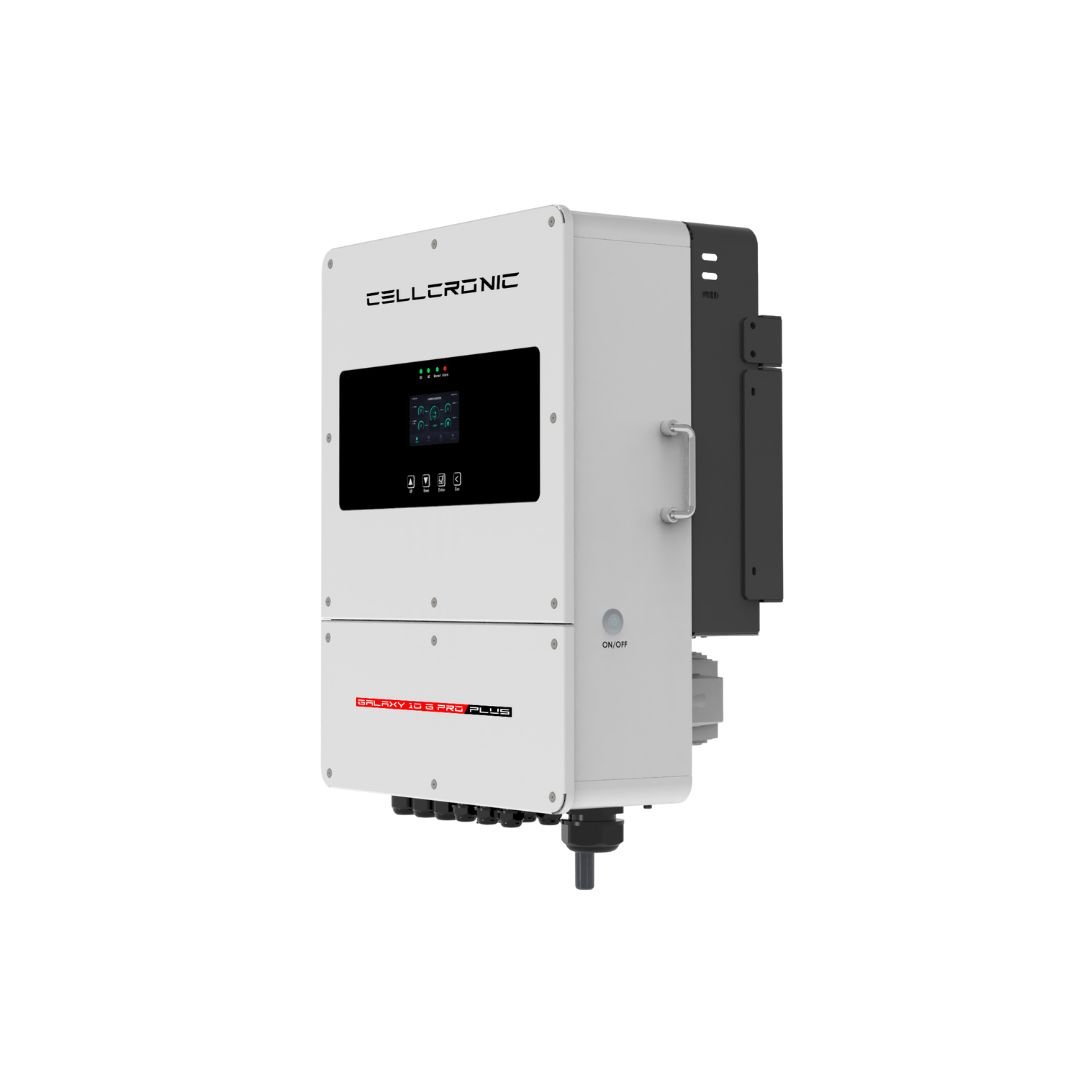

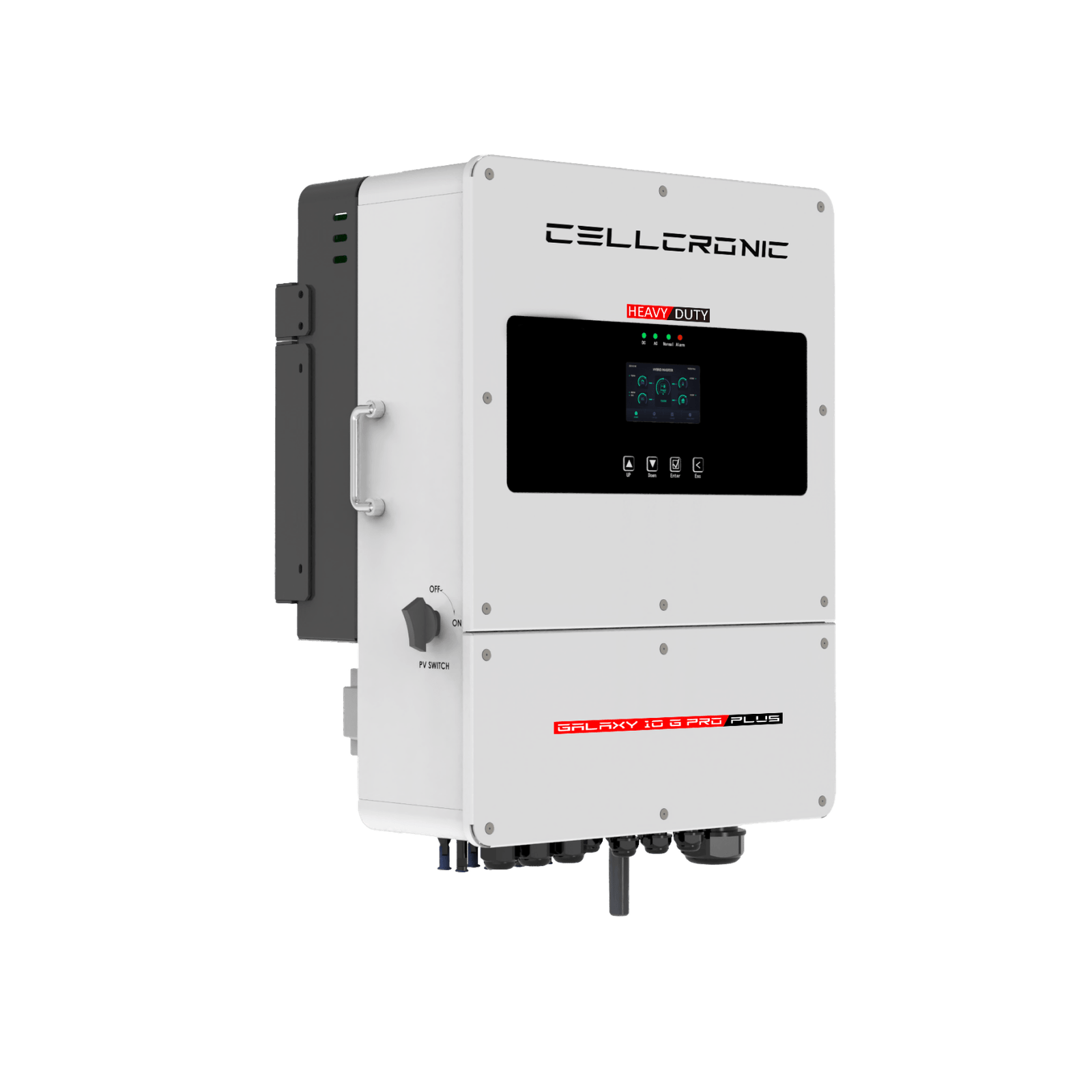

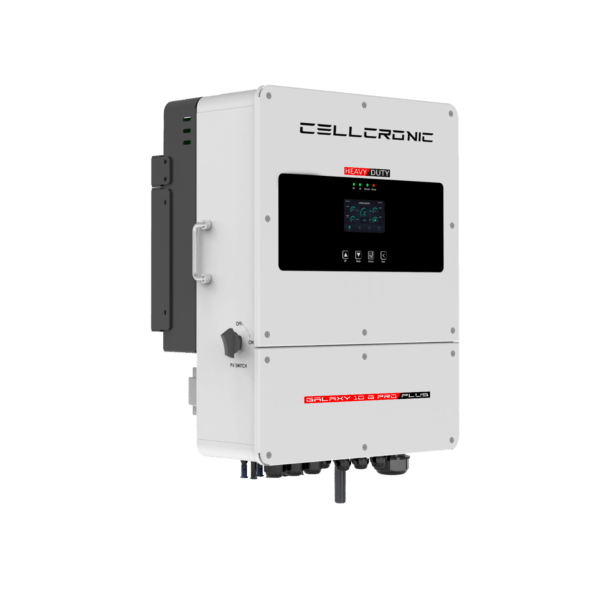

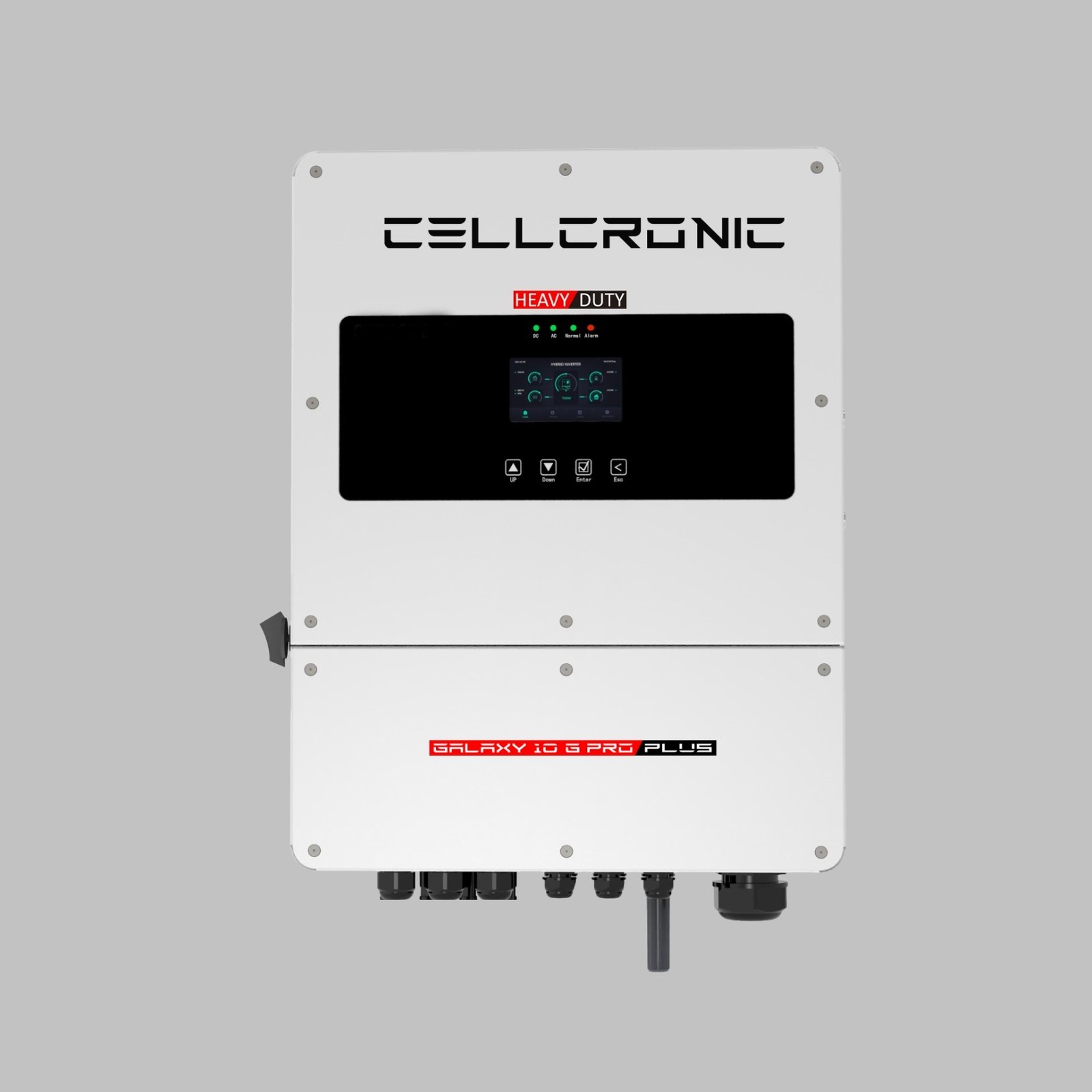

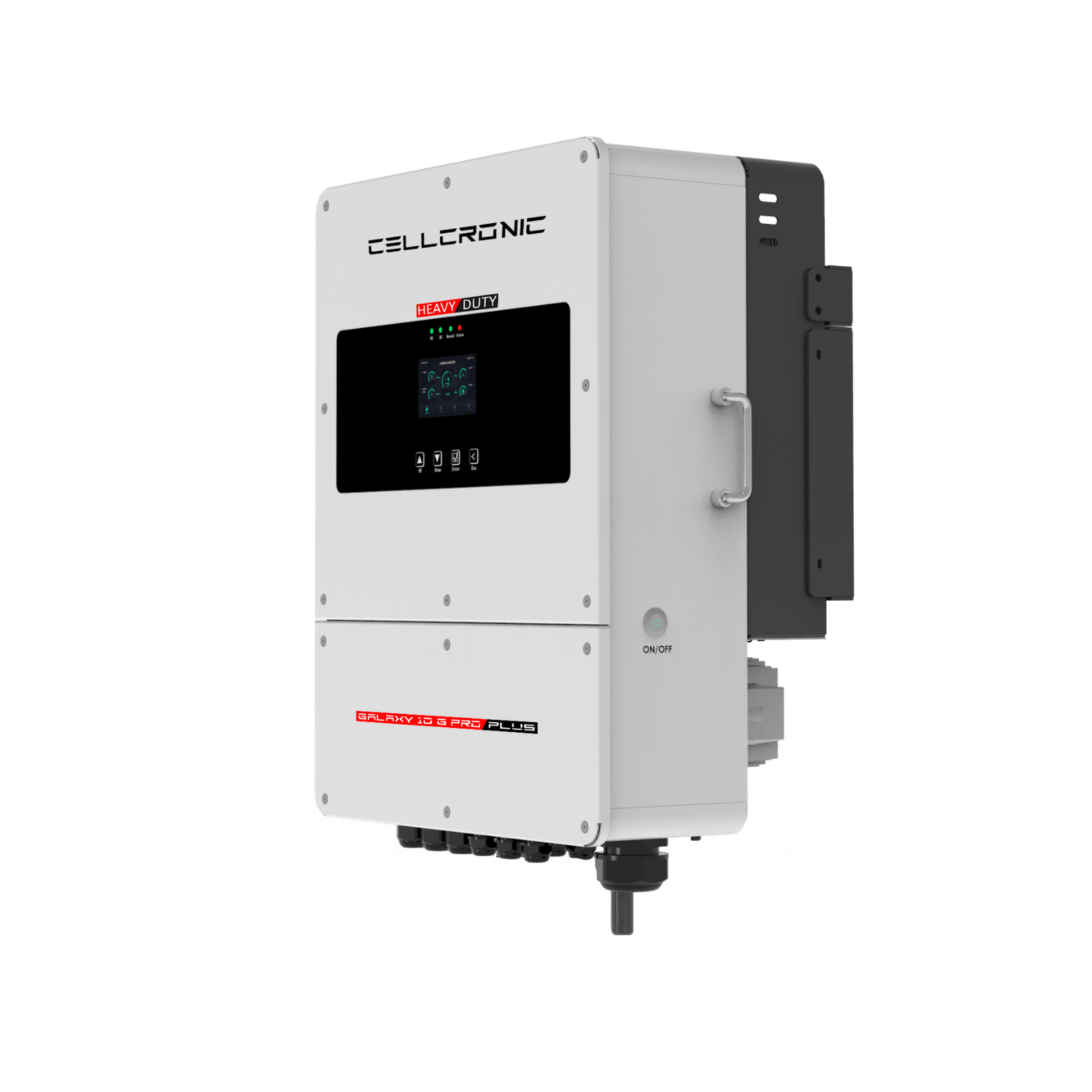

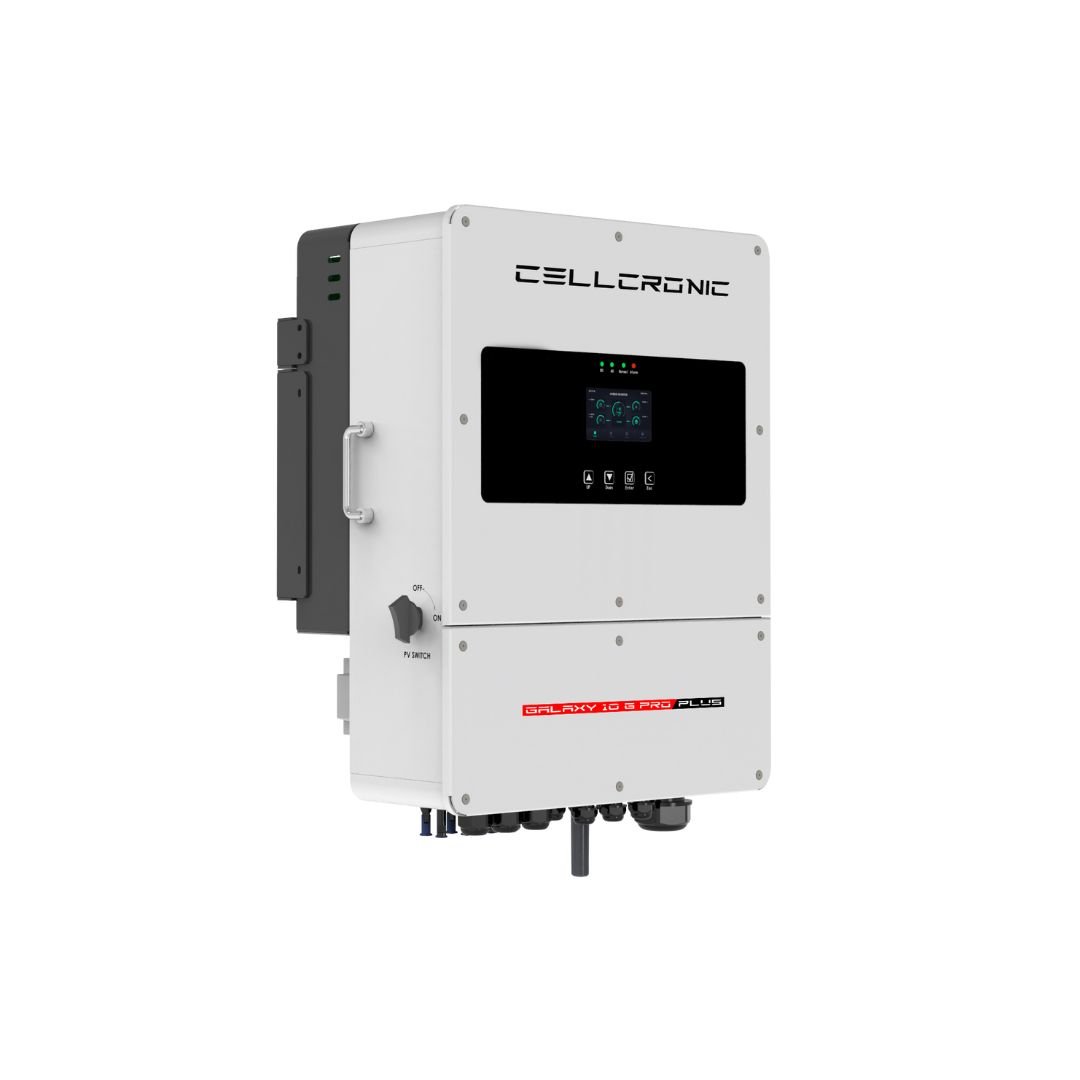

Galaxy-8K-HY-Version-10G-Pro Plus Hybrid Solar Inverter
₹171,427.62 Exl GST
Introduces the newly launched Galaxy-8K-HY Version-10G Pro Plus Hybrid Solar Inverter, setting a new benchmark in power technology. For the first time in India, Cellcronic brings a heavy-duty hybrid inverter designed to handle high-demand applications with ease. It offers an impressive load capacity of 9,600W and a powerful solar input capacity of up to 13,000W, making it ideal for both residential and commercial use. Capable of running up to 6 air conditioners simultaneously, this inverter ensures reliable performance even under heavy loads. Engineered to handle high inductive loads smoothly, it delivers stable, jerk-free operation for sensitive and power-hungry appliances.
Share
Celebrate Freedom with Power-Packed Discounts!
Starts from 14th August 2025, on Galaxy 6G EU 5Kw
4 in stock
Colorful Touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
9600W Maximum Load Capacity & 13000W Maximum Solar Capacity.
9 time period for battery Charging/ discharging.
Max. Charging/discharging current of 190A
Support max. 20 units paralleled and three-phase application.
5 year warranty and can be expendable up to 5 year.
Also works with generators
Key Specifications & Features
- Heavy Duty Hybrid inverter launch in India
- A 8kw model can run 6 AC with home load
- Inverters come with <5ms Switching time
- 20 Inverters can parallel with different capacity inverters
- Neutral to Ground earthing relay introduced for off-grid operation
- 9 time of use function introduced for battery Charging/Discharging
- Function arrive to change Solar Voltage and Ampere acceptance in inverter solar input.
- can set AC charging percentage different from whole charging percentage to save bill
- DC to DC converter introduce in Inverter to charge battery separately from extra solar DC power.
- A new Soft Start function introduce to start the heavy motor without jurk.
| Model Galaxy-8K-HY-Version-10G-Pro Plus Hybrid Solar Inverter | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 40~60V | |
| Max. Charging Current (A) | 190A | |
| Max. Discharging Current (A) | 190A | |
| Number of Battery Input | 1 | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li–ion Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. DC Input Power(W) | 13,000W | |
| Max PV Input Voltage (V） | 500V | |
| Start-up Voltage（V） | 120V | |
| MPPT Voltage Range（V） | 150V-500V | |
| Max. PV Input Current (A) | 26A+26A | |
| Max. Short-Circuit Current (A) | 34A+34A | |
| No. of MPPT Trackers | 2 | |
| No. of Strings Per MPPT Tracker | 2+2 | |
| AC INPUT/OUTPUT DATA | ||
| Rated AC Input/Output Active Power（W） | 8000W | |
| Max. AC Input/Output Apparent Power (VA) | 9600W | |
| Peak Power (off-grid) (W) | 2 times of rated power, 10S | |
| Rated AC Input/Output Current(A) | 34.78A | |
| Max AC Input/Output Current（A) | 41.73A | |
| Max. Input Power From Grid | 12000W | |
| Max. Continuous AC Passthrough(A) | 50A | |
| Power Factor Adjustment Range | > 0.99 @rated power (Adjustable 0.8 LD – 0.8 LG) | |
| Grid Connection Form | L+N+PE | |
| Rated Input/Output Grid Frequency/Range(Hz) | 45Hz-55Hz/55Hz-65Hz (Adjustable) | |
| Rated Grid Voltage (V) | 220V/230 0.85Un-1.1Un | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load <1.5%) | |
| EFFICIENCY | ||
| Max. Efficiency (PV to AC) | 97.9% | |
| Euro Efficiency (PV to AC) | 97.0% | |
| MPPT Efficiency | 99.0% | |
| PROTECTION | ||
| PV Input Lightning Protection | Integrated | |
| Anti-islanding Protection | Integrated | |
| PV String Input Reverse Polarity Protection | Integrated | |
| Insulation Resistor Detection | Integrated | |
| Residual Current Monitoring Unit | Integrated | |
| Output Over Current Protection | Integrated | |
| Output Shorted Protection | Integrated | |
| Surge Protection | TYPE II(DC), TYPE II(AC) | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | CEI 0-21,VDE-AR-N 4105,NRS 097,IEC61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11 | |
| Safety/ EMC Standard | IEC/ED 62109-1 IEC/EN 62109-2,IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | -45~60,＞45 Derating | |
| Relative Humidity | 0-100% | |
| Max. Operation Altitude | 4000m (>2000m derating) | |
| Inverter Topology | Non-Isolated | |
| Type of Cooling | Smart Cooling | |
| Noise(db) | <40 db | |
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 34/35 Kg | |
| Cabinet Size (WxHxD mm) | G1: 514W×749H×291D/G2: 514W×665H×292D | |
| Protection Degree | IP65 | |
| Installation Style | Wall-Mounted | |
| Warranty | 5 Years Standard & upto 5 Years expendable | |
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic offers 2 to 6 years warranty on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
