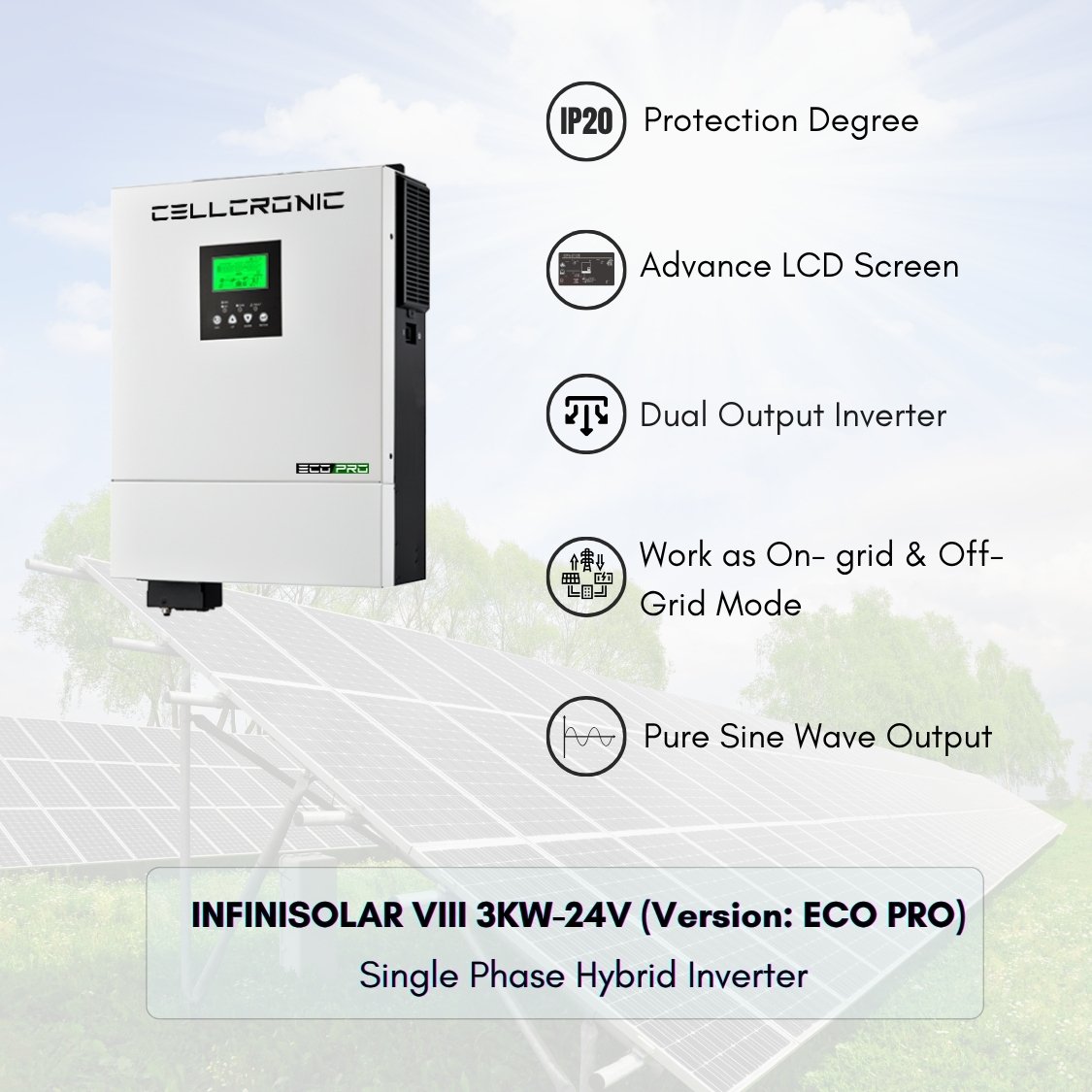

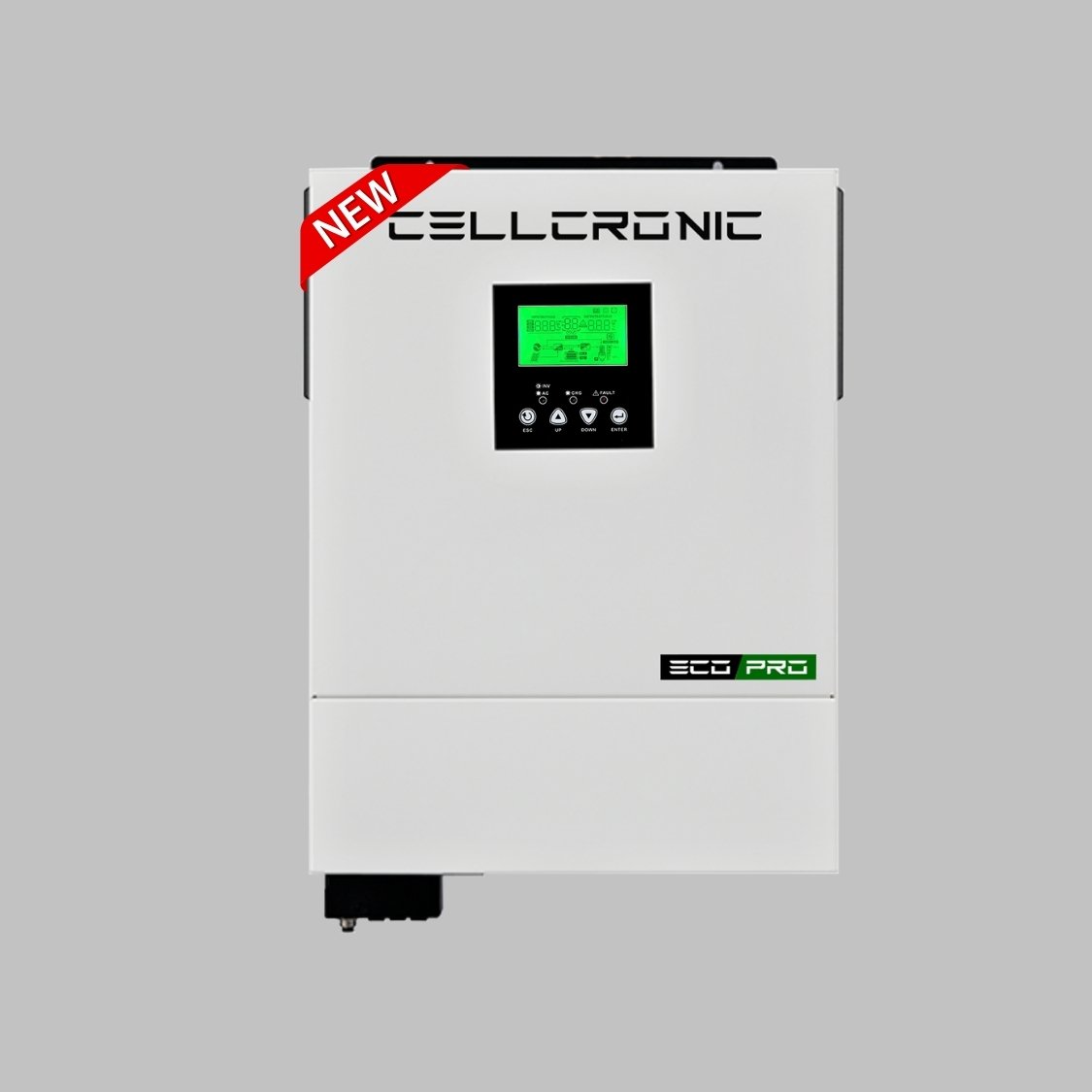

InfiniSolar VIII 3KW-24V Single MPPT Hybrid Inverter (Version: Eco Pro)
₹56,189.52 Exl GST
The INFINISOLAR inverter features dual outputs, with the second output offering advanced scheduling options for on/off control, cutoff voltage settings, SOC management and discharge time adjustments through its LCD interface. This inverter is 3kw Inverter But Load Handle Capacity is 4.2Kw. With its 18A PV input current, the INFINISOLAR is well-suited to the increasing current output of modern solar panels. Its solar capacity is 6kw.
Share
Celebrate Freedom with Power-Packed Discounts!
Starts from 14th August 2025, on Galaxy 6G EU 5Kw
4 in stock
User Friendly LCD Operation , IP20 Protection Degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
4200W Maximum Load Capacity & 6000W Solar Capacity.
Battery equalization extends lifecycle
Max. Charging/discharging current of 120A
Build In WIFI for mobile monitoring (App is available)
2 year warranty
Advance LCD Control module with various communications
Key Specifications & Features
- Dual Output for Normal Load & Smart Load Management

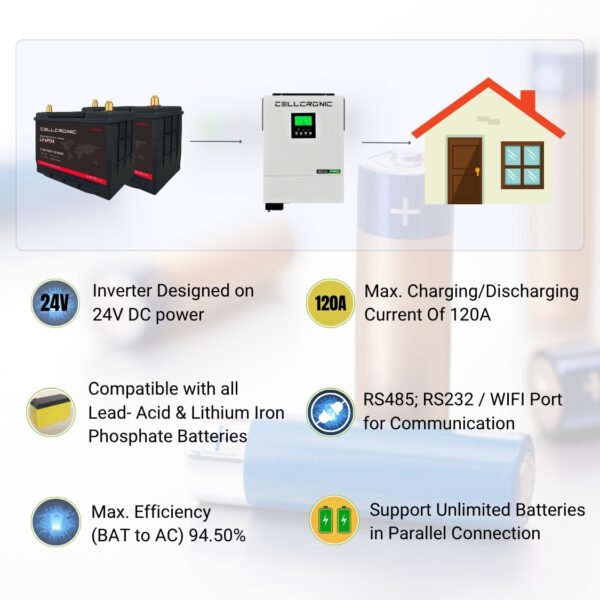

- Inverter Designed on 24V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- Maximum PV Input Current 18A
- Wide PV Input Voltage Range 30VDC-450VDC
- Detachable LCD Control module with various communications
- Intelligent IOT based Wi-Fi system
- Reserved Communication Port for BMS RS232, RS485, CAN
- Battery equalization extends lifecycle
- Battery independency
- Replaceable Fan Design
- 2 Year Warranty
- Inverter Weight 9KG
| Model InfiniSolar VIII 3KW-24V (Version: Eco Pro) Hybrid Inverter | ||
| Battery Input Data | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 20~30V | |
| Battery Voltage VDC | 24 VDC | |
| Floating Charge Voltage | 27 VDC | |
| Overcharge Protection | 32 VDC | |
| Charging Strategy for Li–lon Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||

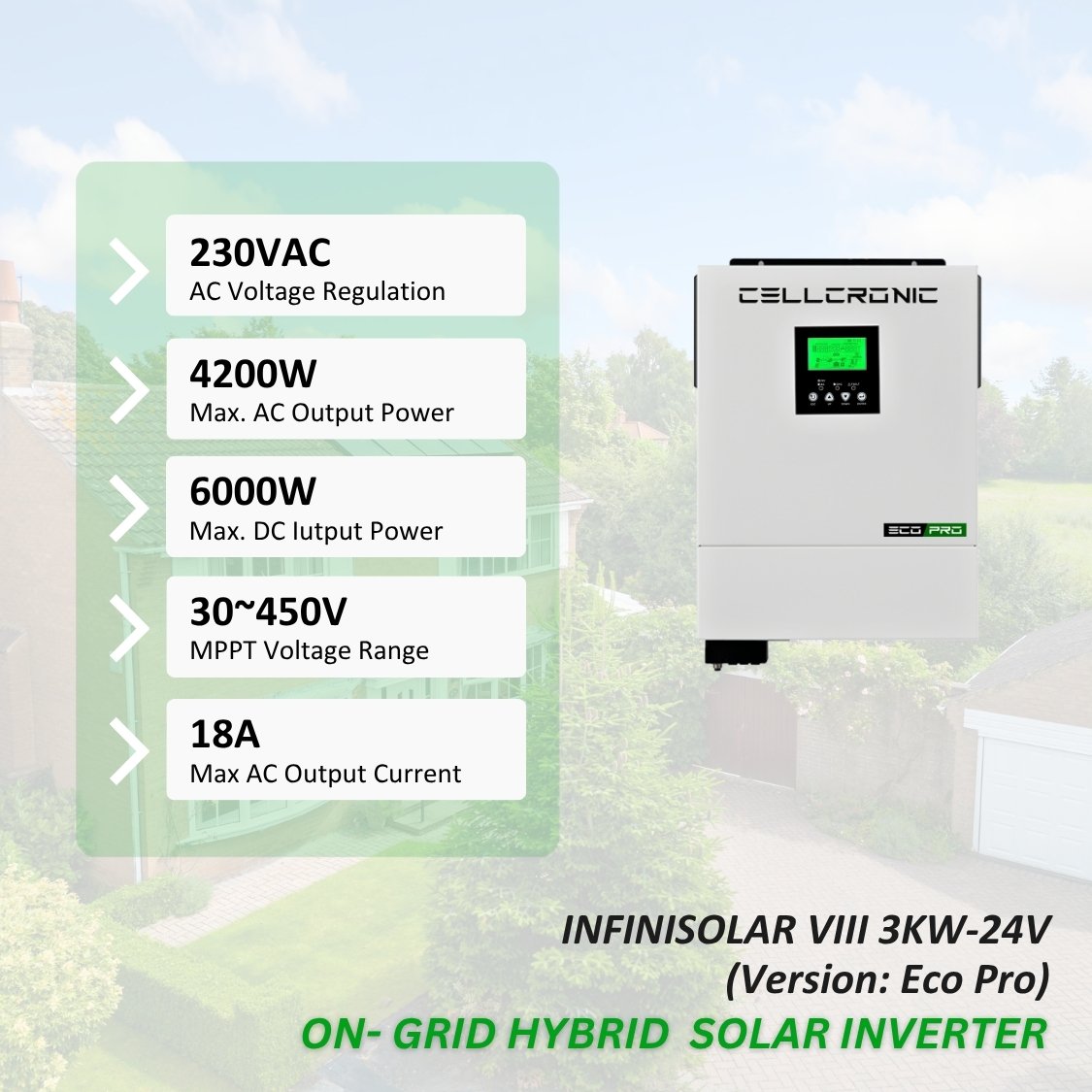

| Max. DC Input Power(W) | 6000W | |
| Maximum PV Array Open Circuit Voltage | 450 VDC | |
| MPPT Voltage Range (V) | 30-450 VDC (30-60 VDC with Battery Connected) | |
| Maximum Solar Charge Current | 120 A | |
| Maximum AC Charge Current | 100 A | |
| Maximum Charge Current | 120 A | |
| PV Input Current (A) | 18 A | |
| No. of Strings Per MPPT Tracker | 1 | |
| AC OUTPUT DATA | ||
| Rated AC Output and UPS Power(W) | 3000W | |
| Max. AC Output Power(W) | 4200W | |
| Peak Power (off grid) | 2 time of rated power, 10 S (8400VA) | |
| AC Output Rated Current(A) | 13.6A | |
| Max. AC Current(A) | 19A | |
| Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) | |
| Power Factor | 0.8 leading to 0.8 lagging | |
| Output Frequency and Voltage | 50/60Hz; 220/230Vac L+N+PE (single phase) | |
| Grid Type | Single Phase | |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) | |
| DC Injection Current | <0.5% In | |
| EFFICIENCY | ||
| Max. Efficiency | 93.00% | |
| Euro Efficiency | 96.50% | |
| MPPT Efficiency | 99.90% | |
| PROTECTION | ||
| PV Input Lightning Protection | Integrated | |
| Anti-island Protection | Integrated | |
| PV String Input Reverse Polarity Protection | Integrated | |
| Insulation Resistor Detection | Integrated | |
| Residual Current Monitoring Unit | Integrated | |
| Output Over Current Protection | Integrated | |
| Output Shorted Protection | Integrated | |
| Output Over Voltage Protection | Integrated | |
| Surge Protection | DC Type ll / AC Type ll | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | EN50549-1, VDE0126, IEC61727, VDEN4105, G99, CEI0-21, NRS097, NBR16149/16150, RD1699 | |
| Safety Regulation | IEC62109-1/-2 | |
| EMC | IEC62109-1/-2 | |
| GENERAL DATA | ||
| Operating Temperature (°C) | -10°C to 50°C | |
| Storage Temperature (°C) | -15°C to 60°C | |
| Operating Humidity | 5% to 95% Relative Humidity (Non-Condensing) | |
| Cooling | Fan Cooling | |
| Noise(db) | <30 db | |
| Communication with BMS | RS485/RS232/CAN | |
| Weight (kg) | 9KG | |

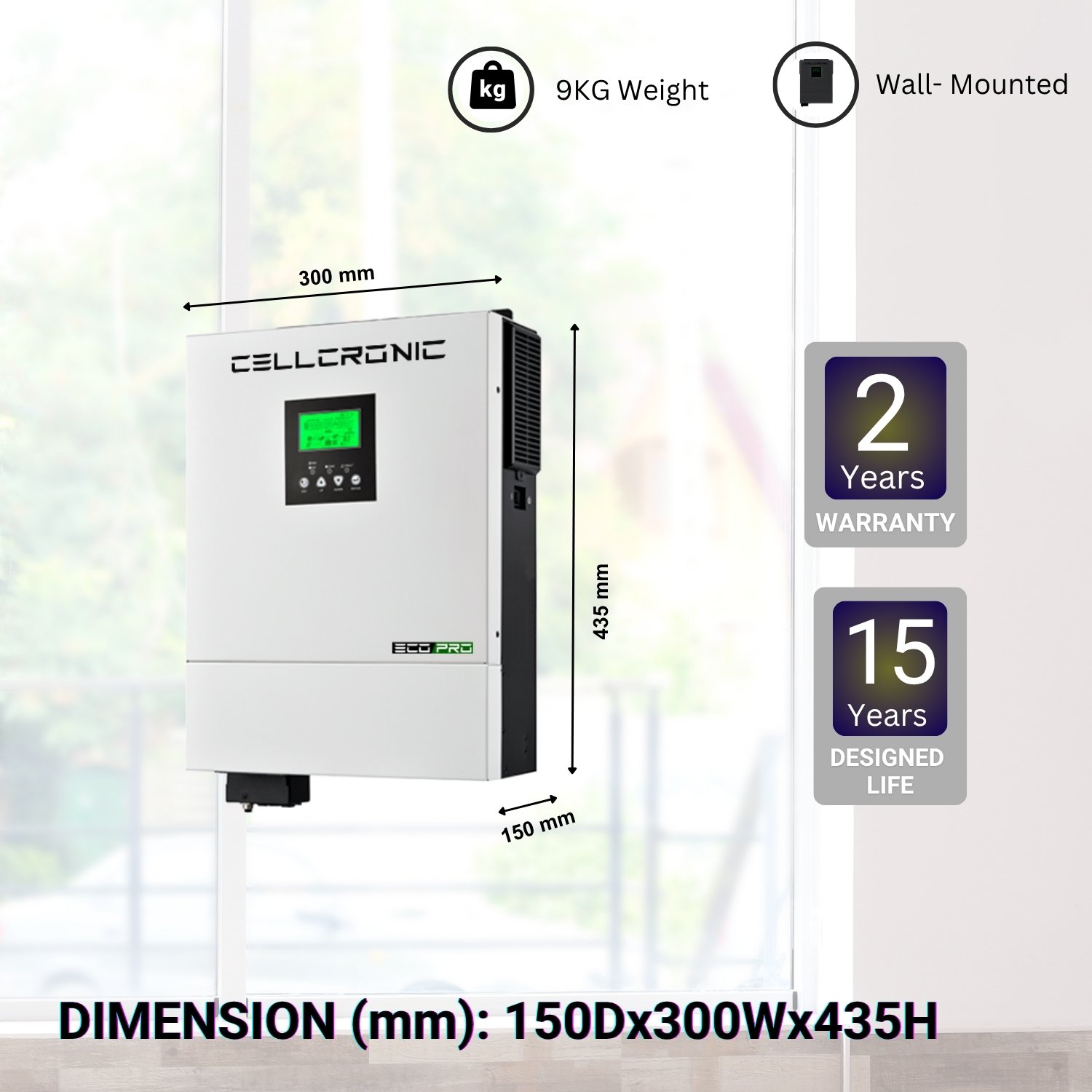

| Size (mm) | 150×300×435 (Excluding Connectors and Brackets) | |
| Protection Degree | IP20 | |

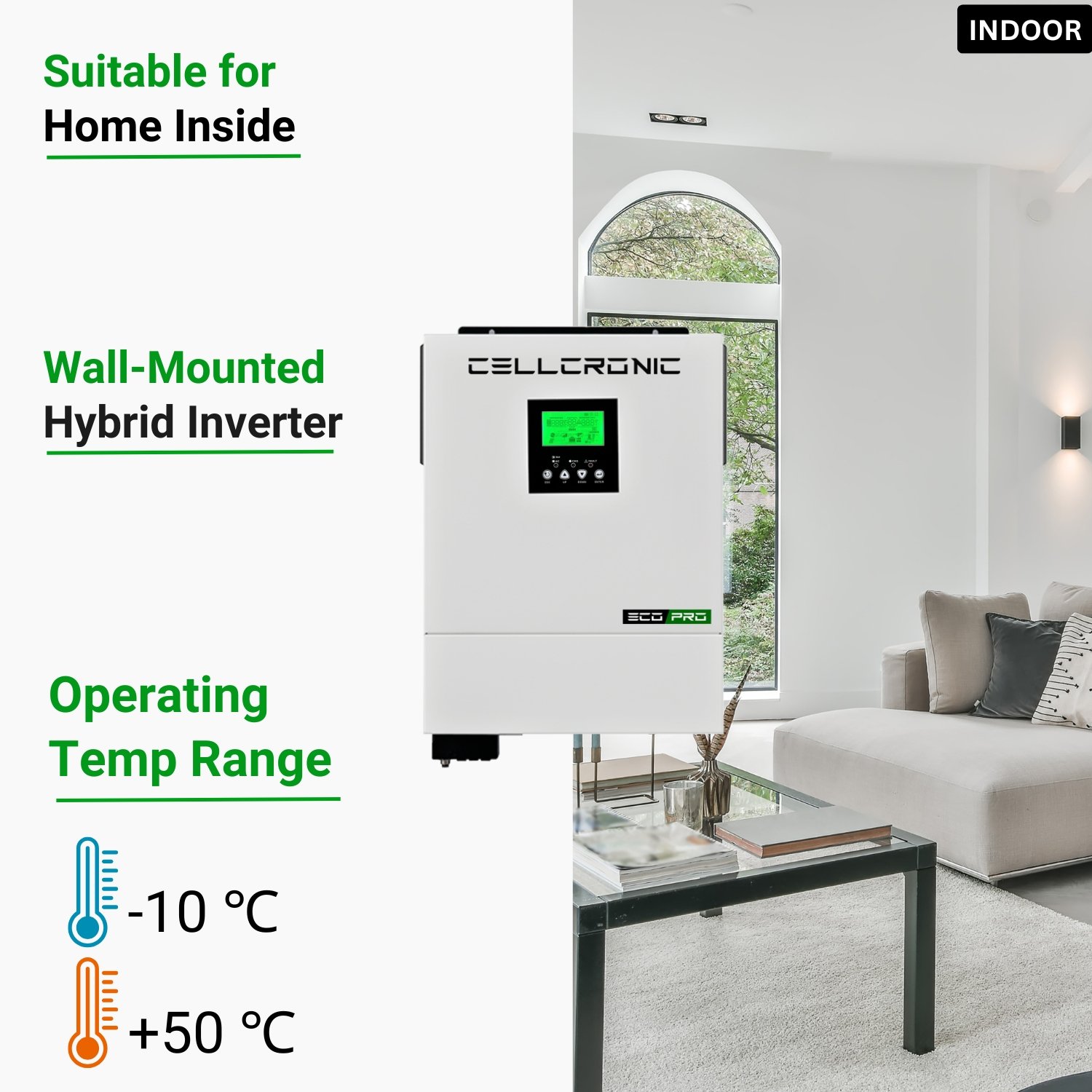

| Installation Style | Wall-mounted | |
| Warranty | 2 Years | |
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic offers 2 to 6 years warranty on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
