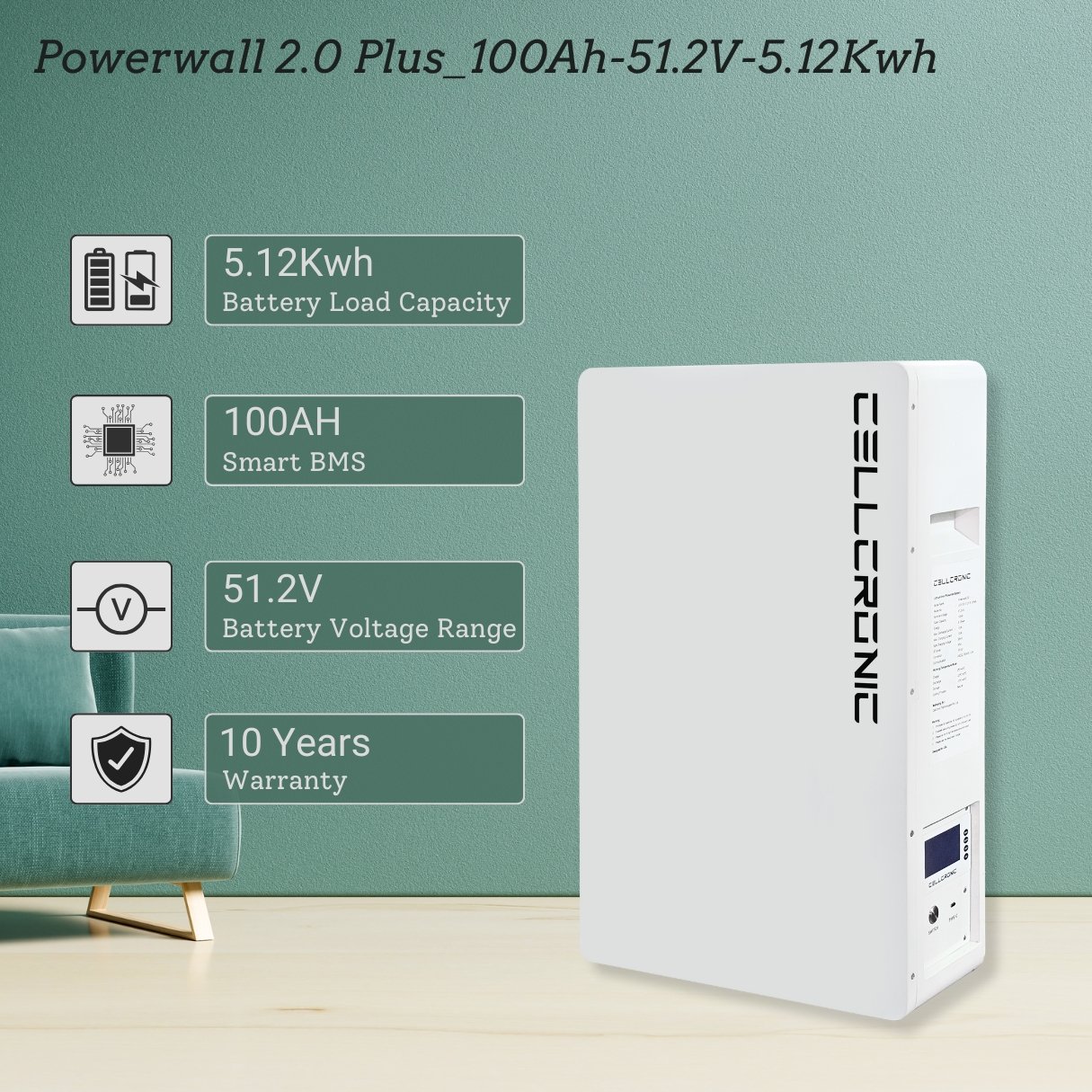

Powerwall 2.0 Plus__100Ah-51.2V-5.12Kwh LiFePo4 Battery
₹148,304.24 Exl GST
Crafted out of Lithium Iron Phosphate (LiFePO4) technology, this is a battery built to last. with 4,500+ recharge cycles @80% DOD the 100Ah provides 5X the lifespan than your typical SLA battery. Built in smart BMS which can realize real-time monitoring the battery. It is the best home storage solution available in the market.
Share
Hurry! only 2 left in stock.
Super Prismatic lithium cells
6000+ life cycle at 80% DOD
60 year design life
Support 32 Batteries in parallel Mode
Compatible with Cellcronic, Deye, Voltronic, and most hybrid inverter brands
10 year warranty
Good choice for daily power supply
Environment Friendly, No Maintenance, Light Weight
IP54 Rating Battery
Key Specifications & Features
- Lightweight: 52 KG

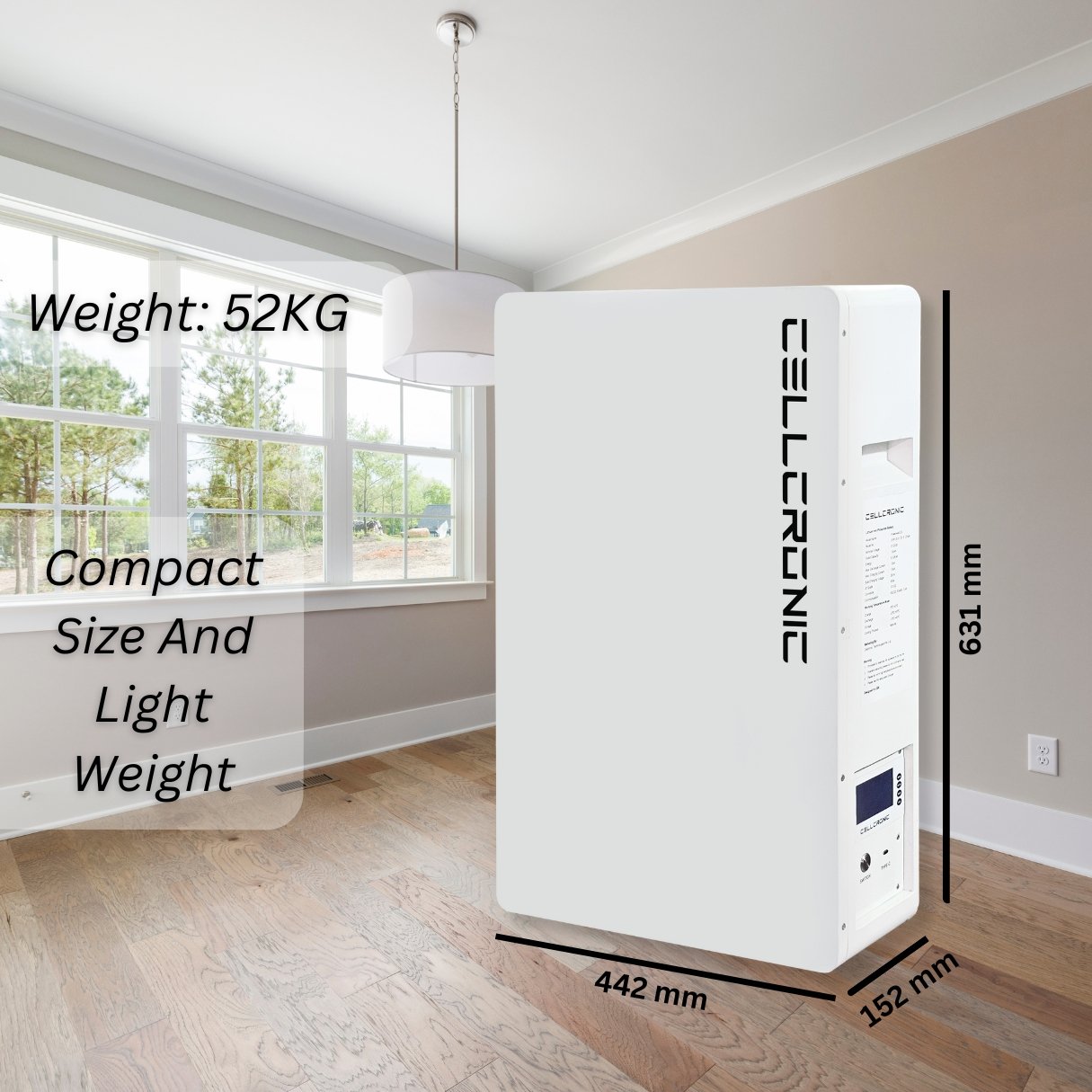

- Compact: H631*W442*D152(mm)
- Parallel Support: Up to 32pcs
- 100AH _5.12kwh Battery Capacity
- Warranty: 10 Years
- No maintenance, Long Service Life,
- Environment Friendly Battery.
- Â Service Span Up to 45 years.
- 6000+ Life cycle at 80% DOD
- Good choice for daily power supply
| Model                                                                             Powerwall 2.0 Plus_100Ah-51.2V-5.12Kwh | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Electrical Characteristics | ||
| Nominal voltage | 51.2V | |
| Nominal capacity | 100Ah | |
| Energy | 5.12Kwh | |
| Cycle Life | 6000 Life Cycle at 80% DOD | |
| Months Self | ≤3.5% per month at 25℃ | |
| Battery Cell | 3.2V 100AH, Prismatic, LiFePo4 | |
| Â Cell compose method | Â 16S1P | |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Standard Charge | ||
| Charge Voltage | DC 54.8V | |
| Standard Charge | 30A | |
| Max. Charge Current | 100A | |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Standard Discharge | ||
| Max. Continuous Discharge Current | 100A | |
| Peak discharge current | 125A (For Surge load) | |
| Discharge Cut-off Voltage | 42V | |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Temperature | ||
| Charge Temperature | 0℃ to 45℃ | |
| Discharge Temperature | 20℃ to 60℃ | |
| Storage temperature | -10°C ~ + 45°C（every month needs to do charge and discharge for one time if storage and no put in use) | |
| Initial Impedance | <20mΩ | |
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â General Data | ||
| Approx. Weight | Approx. 52KG | |
| Dimension (H*W*D) | Â H631*W442*D152(mm) | |
| Module Parallel | Support up to 32pcs parallel | |
| Communication Mode | RS485, CAN | |
| Housing | Metal | |
| Screen | Colorful LCD Screen | |
| Support Inverter brands | Deye, Senergy, Sorotec, Voltronic”. (any brand inverter if you need to support) | |
| IP Rating | IP54 | |
| Protection | Over voltage protection (Cell & System), Low voltage protection (Cell & System), High temperature protection, Low temperature protection, Short circuit protection, Over current protection | |
| Warranty | 10 Years | |
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic offers 2 to 6 years warranty on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
