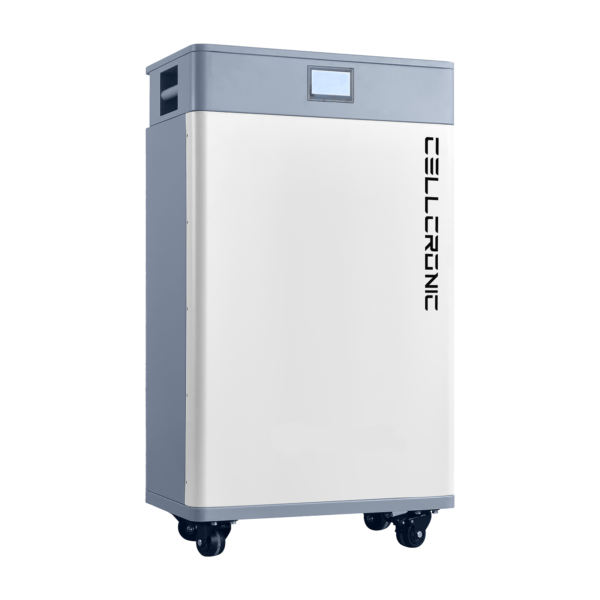

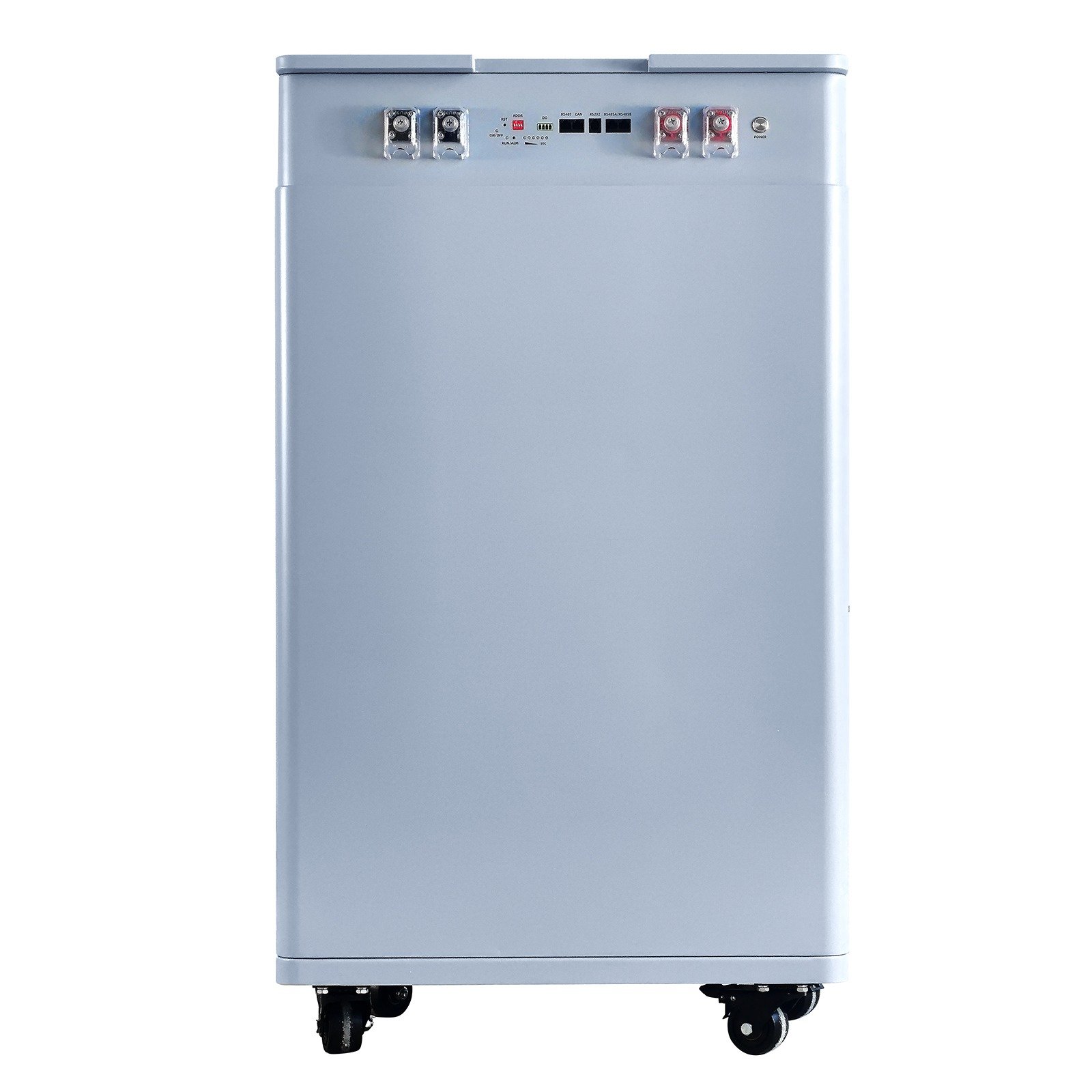

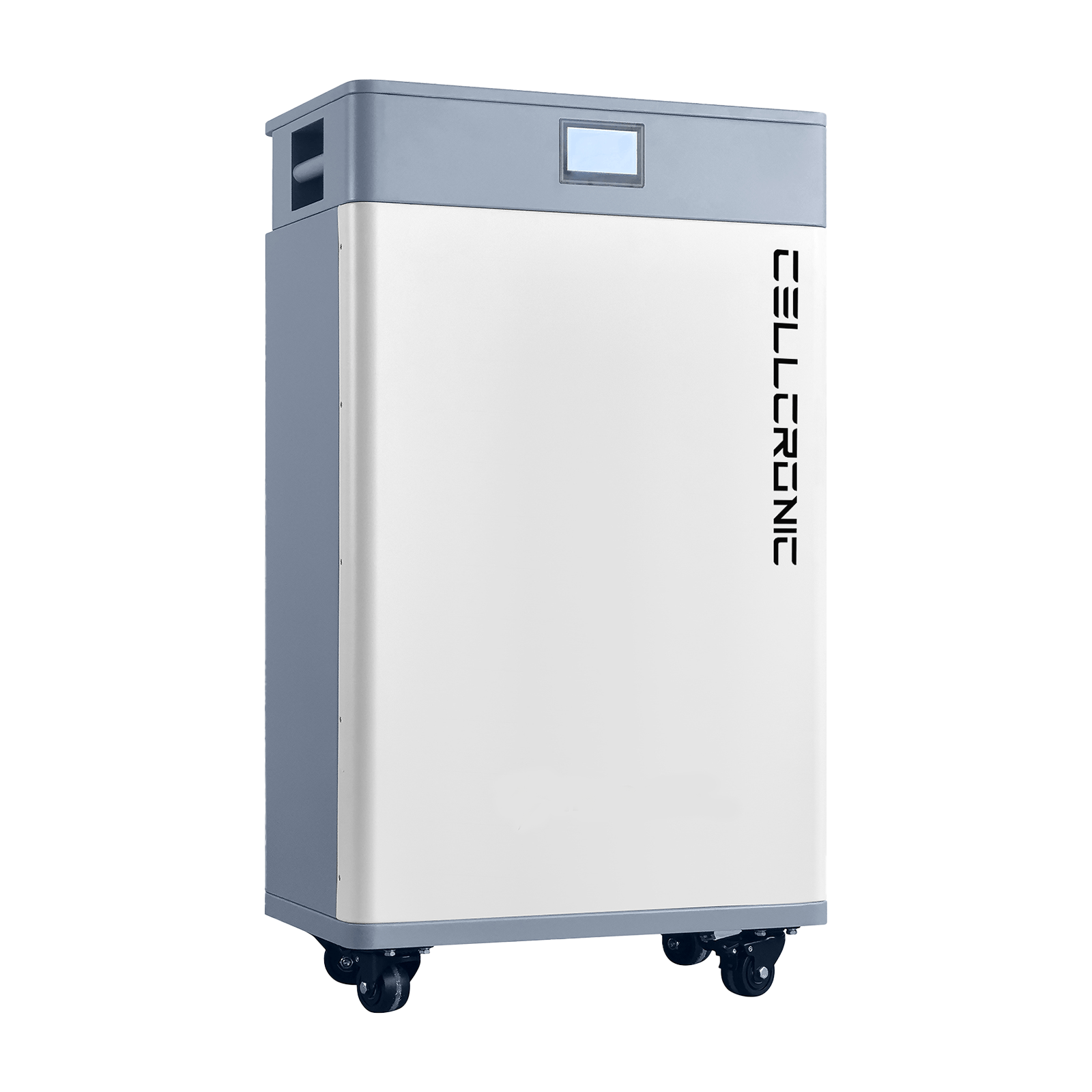

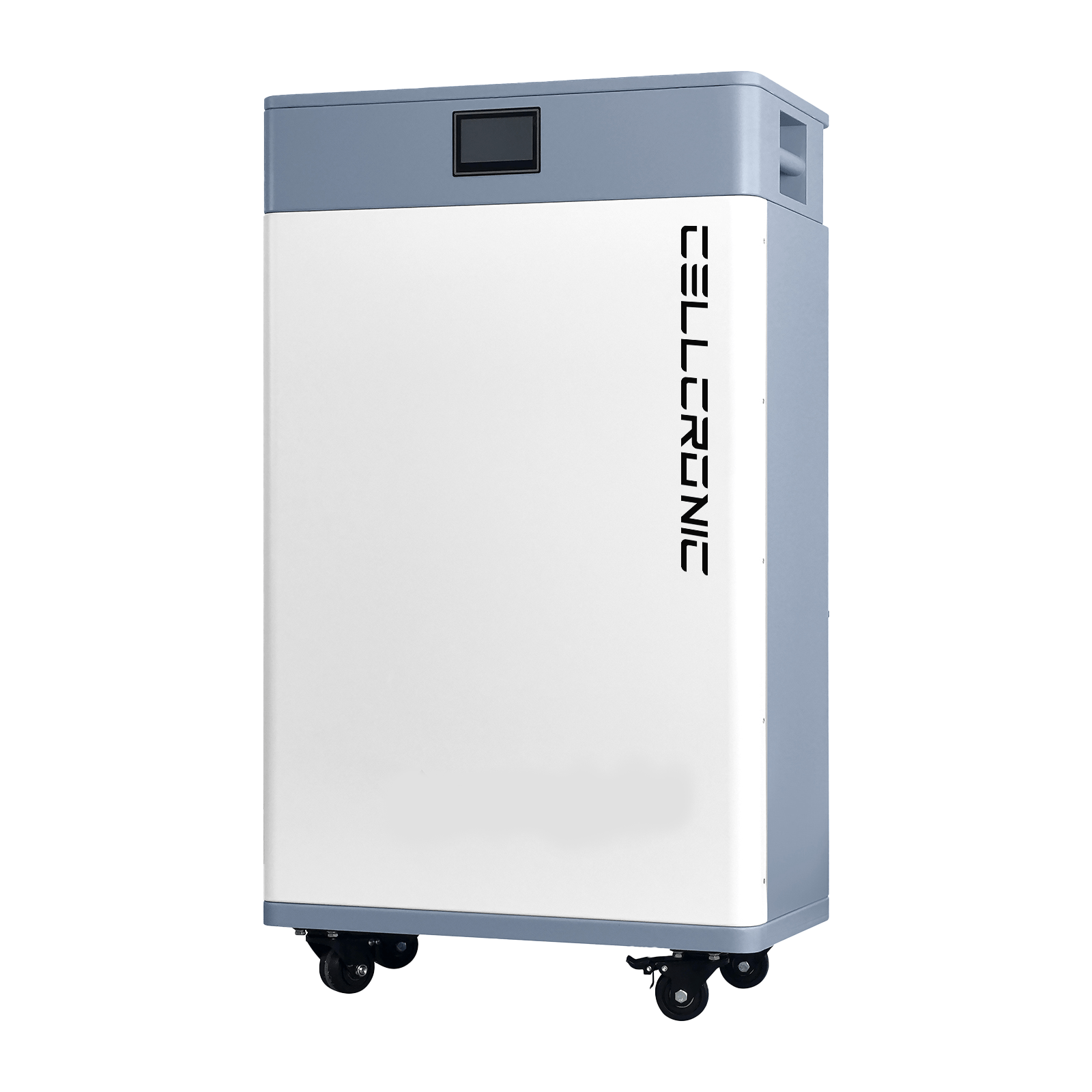

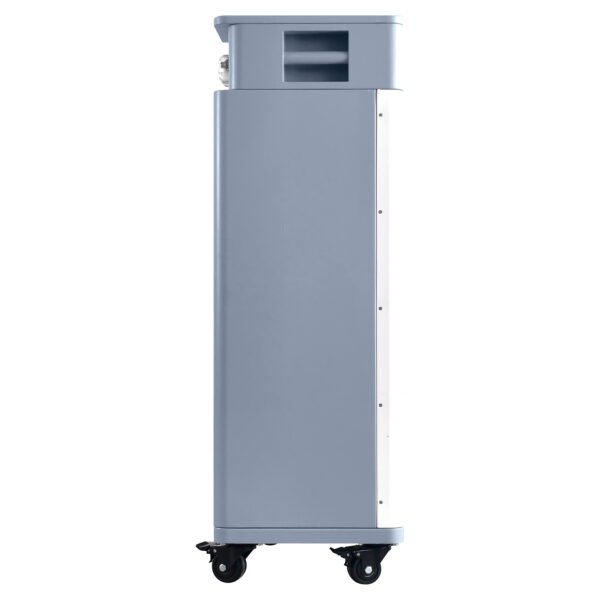

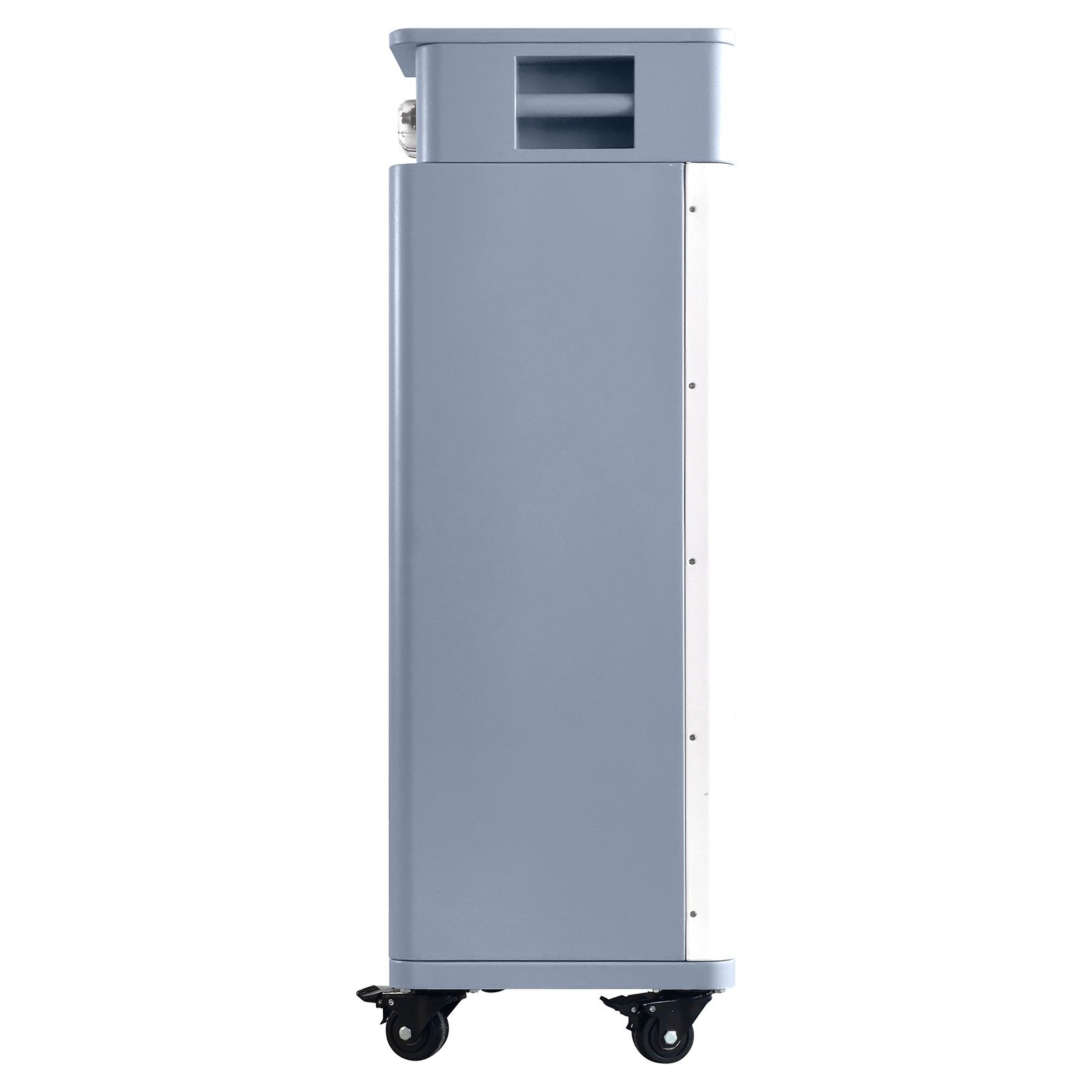

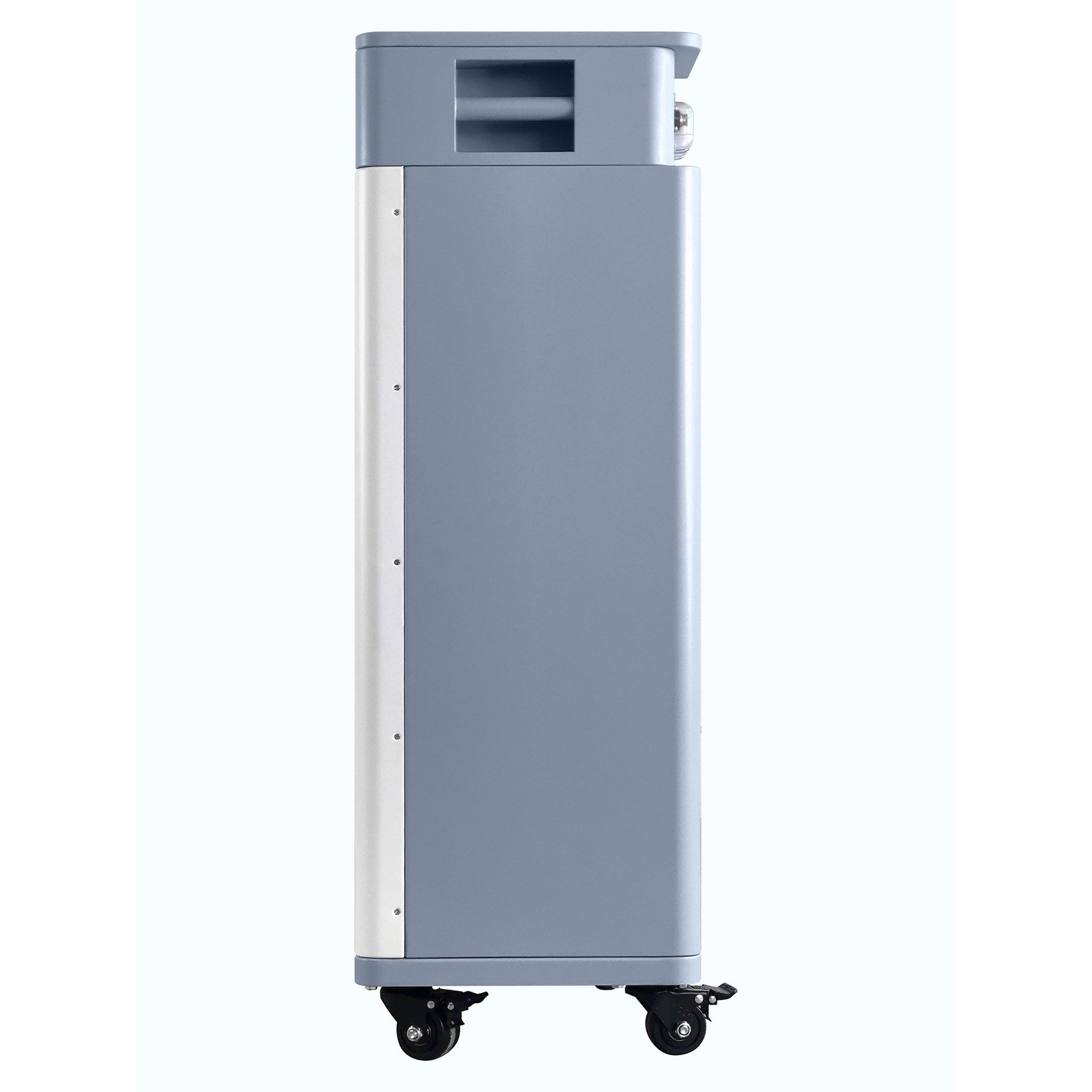

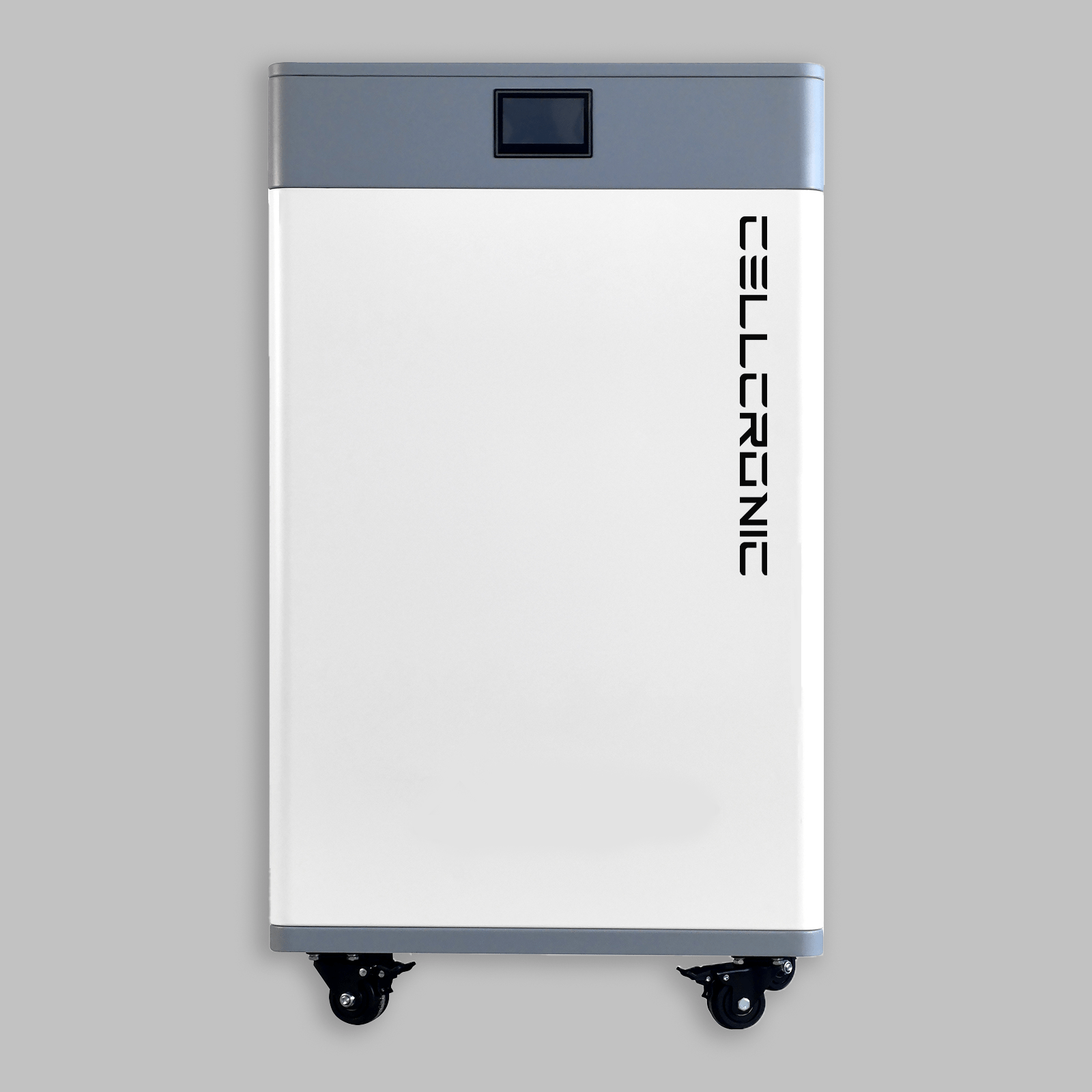

Powerwall 3.0 630Ah-51.2V-32.25Kwh
₹381,355.93 Exl GST
The Cellcronic LiFePO4 32.25 kWh 51.2V Battery is a powerful and reliable energy storage solution designed for modern solar and backup systems. Equipped with a built-in 630Ah Smart BMS, it ensures advanced protection, optimized performance, and intelligent battery management. With multiple communication protocols including RS232, RS485, CAN, Bluetooth, and Wi-Fi, it enables seamless monitoring and integration with inverters and energy management systems. Offering up to 6000 life cycles, the Cellcronic battery provides long-lasting, efficient, and sustainable power for residential and commercial applications.
Share
Celebrate Freedom with Power-Packed Discounts!
Starts from 14th August 2025, on Galaxy 6G EU 5Kw
2 in stock
Colorful Touch LCD screen for all parameters.
6000 cycle life at 80% DOD.
Super graphene lithium cells for long life span.
Smart 630A BMS, Super safety design.
RS232, CAN, RS485, Bluetooth, WIFI communication ports
Parallel up to 16 Powerwall units.
45 years design life.
200A Max. Charge & 200A Max. Discharge Current
05-year warranty.
Key Specifications & Features
- Lightweight: 270KG
- Compact: H1125*W650*D380(mm)
- Parallel Support: Up to 16pcs
- 630AH Battery Capacity
- Warranty: 5 Years
- No maintenance, Long Service Life,
- Environment Friendly Battery.
- Service Span Upto 45 years.
- 6000+ Life cycle at 80% DOD
- Good choice for daily power supply
| Model Powerwall 3.0 630Ah-51.2V-32.25Kwh LiFePo4 Battery | ||
| Electrical Characteristics | ||
| Nominal voltage | 51.2V | |
| Nominal capacity | 630Ah | |
| Energy | 32.25 Kwh | |
| Cycle Life | 6000 Life Cycle at 80% DOD | |
| Months Self | ≤3.5% per month at 25℃ | |
| Battery Cell | 3.2V 630AH, Prismatic, LiFePo4 | |
| Charge & Discharge | ||
| Charge Voltage | DC 58.4V | |
| Discharge Cut-off Voltage | 43.2 V | |
| Standard Charge Current | 200A | |
| Standard Discharge Current | 200A | |
| Max. Continous Charge Current | 200A | |
| Max. Continous Discharge Current | 200A | |
| Temperature | ||
| Charge Temperature | 0 ~ 45°C（32 ~ 113°F） | |
| Discharge Temperature | -20 ~ 55°C（-4 ~ 131°F） | |
| Storage temperature | 10 ~ 45°C（14 ~ 113°F） | |
| General Data | ||
| Initial Impedance | <50mΩ | |
| Approx. Weight | 270KG | |
| Dimension (H*W*D) | H1125*W650*D380(mm) | |
| Module Parallel | 16 PCS | |
| Communication Mode | RS232 / RS485 / CAN / Bluetooth / WIFI | |
| Screen | Colorful Touch LCD Screen | |
| Support Inverter brands | “Deye, Senergy, Sorotec, Voltronic”. (any brand inverter if you need to support, please tell us, we can do this support for you) | |
| Housing | Metal | |
| IP Rating | IP52 | |
| Protection | Over voltage protection (Cell & System), Low voltage protection (Cell & System), High temperature protection, Low temperature protection, Short circuit protection, Over current protection | |
| Warranty | 5 Years | |
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic offers 2 to 6 years warranty on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
