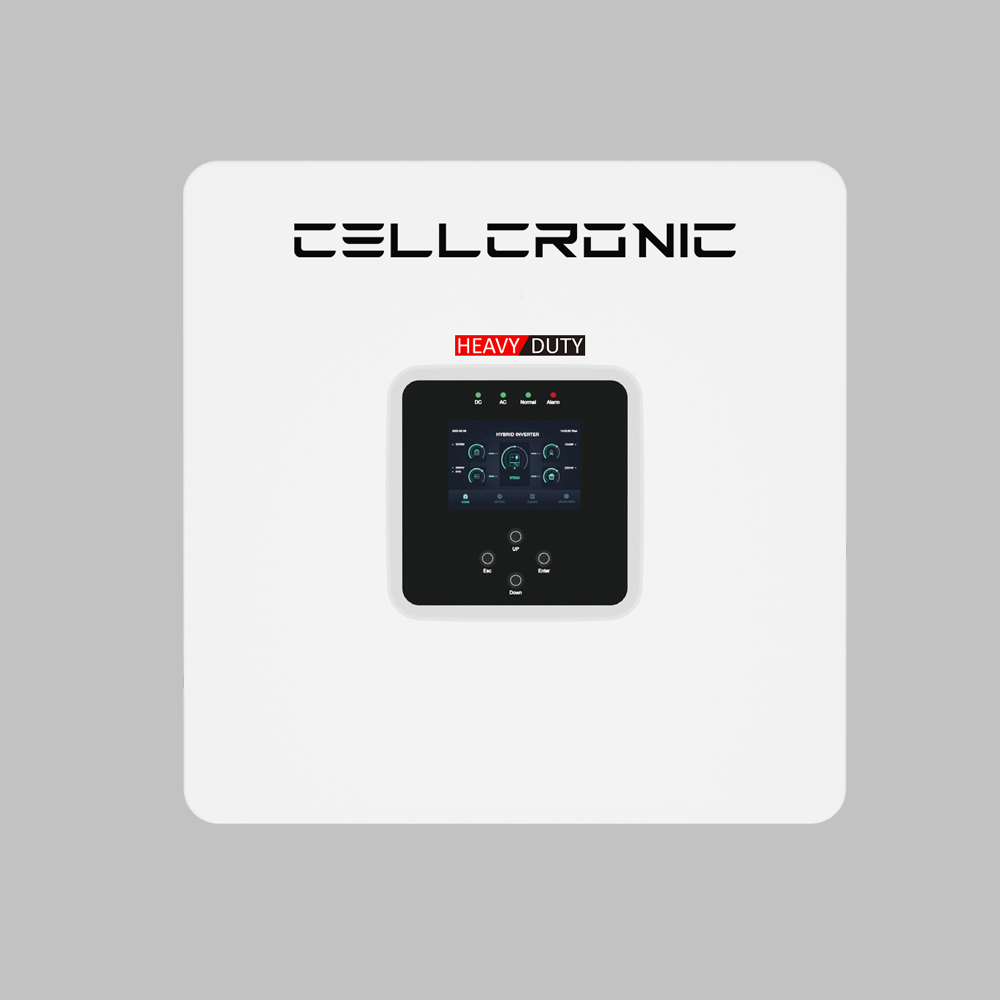

Galaxy 4.4K Version 10G Pro Plus Hybrid Inverter
Our 10G Pro Plus Series is a heavy-duty hybrid inverter designed for powerful and reliable energy management. It delivers high load-handling capacity and supports high solar input for efficient power generation. With advanced hybrid technology, it provides smooth performance for residential, commercial, and industrial applications. The 10G Pro Plus Series is an ideal solution for customers looking for performance, flexibility, and long-term energy savings.
Share
Celebrate Freedom with Power-Packed Discounts!
Starts from 14th August 2025, on Galaxy 6G EU 5Kw
2 in stock
Colorful touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
5500W Maximum Load Capacity & 7200W Solar Capacity.
9 time period for battery Charging/ discharging.
Max. Charging/discharging current of 171A
Does not support parallel operation.
5 year warranty and can be expendable up to 10 year.
Also works with generators
Key Specifications & Features
- AC couple to retrofit existing solar system
- Works as On- grid and Off- Grid mode
- Inverter Designed on 24V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 150V-425VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 10kg
- Inverter Dimension 380*380*120
- 20-25 years design life.
| Model Galaxy 4.4K Version 10G Pro Plus Hybrid Inverter | ||
| Battery Input Data | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 20~30V | |
| Max. Charging Current (A) | 171A | |
| Max. Discharging Current (A) | 171A | |
| Number of Battery Input | 1 | |
| Charging Strategy for Li–lon Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. PV Input Power(W) | 7200W | |
| Max. PV Input Voltage (V) | 500V | |
| Start–up Voltage (V) | 125V | |
| MPPT Voltage Range (V） | 370 (150-425V) | |
| MPPT Input Range(V) | 150-425 | |
| Max PV Input Current (A） | 15A | |
| Max. Short-Circuit Current (A) | 18A | |
| No.of MPP Trackers | 1 | |
| No. of Strings Per MPPT Tracker | 1 | |
| AC INPUT/OUTPUT DATA | ||
| Rated AC Input/Output Active Power (W） | 4400 | |
| Max. AC Input/Output Apparent Power (VA) | 5500 | |
| Rated AC Input/Output Current (A) | 19.1 | |
| Max AC Input/Output Current (A） | 23.9 | |
| Max. Continuous AC Passthrough(A) | 29A | |
| Peak Power (off grid) (w) | 2 times of rated power, 10S | |
| Power Factor Adjustment Range | > 0.99 @rated power (Adjustable 0.8 LD – 0.8 LG) | |
| Rate Input/Output Voltage(V) | 220/230 | |
| Rated Input/Output Grid Frequency/Range(Hz) | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | |
| Grid Connection Form | L+N+PE (Single Phase) | |
| Total Current Harmonic Distortion THDi | THD<3%(Linear load <1.5%) | |
| DC Injection Current | <0.5% In | |
| EFFICIENCY | ||
| Max. Efficiency (PV to AC) | 97.60% | |
| Eur. Efficiency (PV to AC) | 96.50% | |
| MPPT Efficiency | 99.90% | |
| PROTECTION | ||
| AC Output Overcurrent Protection | Integrated | |
| AC Output Overvoltage Protection | Integrated | |
| AC Output Short Protection | Integrated | |
| Thermal Protection | Integrated | |
| DC Terminal Insulation Impedance Monitoring | Integrated | |
| Ground Fault Current Monitoring | Integrated | |
| Island Protection Monitoring | Integrated | |
| DC Input Switch | Integrated | |
| Residual Current Detection (RCD) | Integrated | |
| Surge Protection | TYPE II(DC),TYPE II(AC) | |
| INTERFACE | ||
| Display | LCD+LED | |
| Communication Interface | RS485,CAN | |
| Monitor Mode | WIFI | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | -40-60°C(>45°C derating) | |
| Permissible Ambient Humidity | 0-100% | |
| Permissible Altitude | 2000m | |
| Noise | <55dB | |
| Parallel | Not Supported | |
| Cooling | Air Cooling | |
| Ingress Protection(IP) Rating | IP65 | |
| Inverter Topology | Non-Isolated | |
| Weight (kg) | 10Kg | |
| Size (W*H*D) (mm) | 380*380*120(Excluding connectors and brackets) | |
| Over Voltage Category | OVC II(DC),OVC III(AC) | |
| Installation Style | Well-mounted | |
| Warranty | 5 Years/ Expendable up to 10 years | |
| EMC/Safety Regulation | IEC/ED 62109-1 IEC/EN 62109-2,IEC/EN 61000-6-1, IEC/EN 61000-6-3 | |
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic offers 2 to 6 years warranty on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
