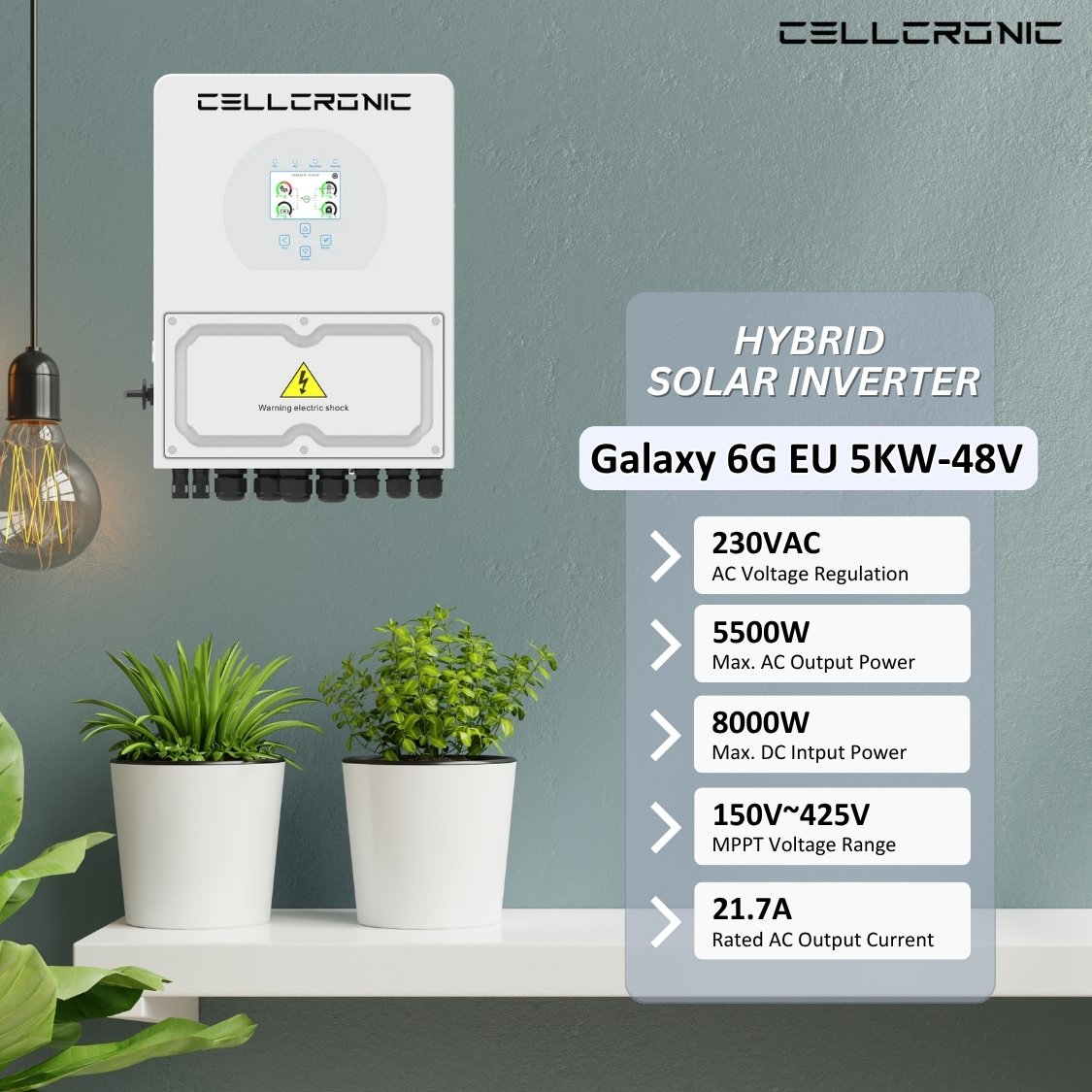

Galaxy 6G EU 5Kw Dual Mppt Single Phase Hybrid Inverter
₹108,927.68 Exl GST
Galaxy 6G is a 6th generation inverter technology. It comes with loaded accessories like Battery wire, ACDC box, CT sensor, Battery temperature sensor, and communication cables. It supports high PV voltage (150~425vdc) for easy PV installation. We can connect 16 inverters in parallel for a big operation.
Share
Out of stock
Notify me when product is available
Colorful touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
5500W Maximum Load Capacity & 8000W Solar Capacity.
6 time period for battery Charging/ discharging.
Max. Charging/discharging current of 120A
Support max. 16 units paralleled and three-phase application.
5 year warranty and can be expendable up to 10 year.
Also works with generators
Key Specifications & Features
- AC couple to retrofifit existing solar system
- Works as On- grid and Off- Grid mode

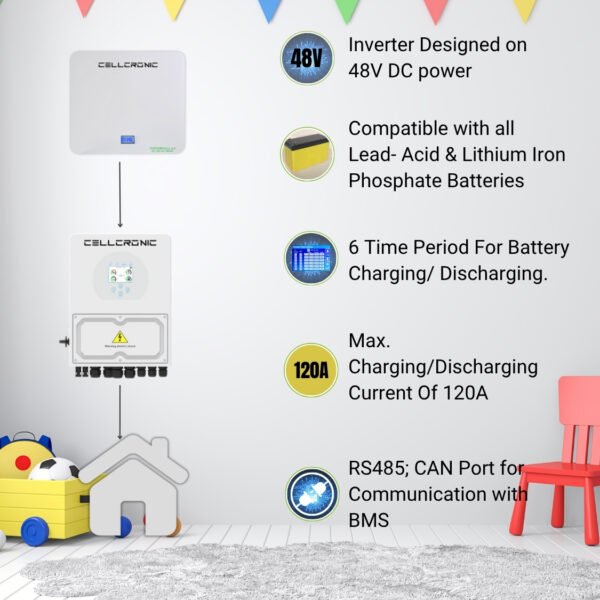

- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 150V-425VDC

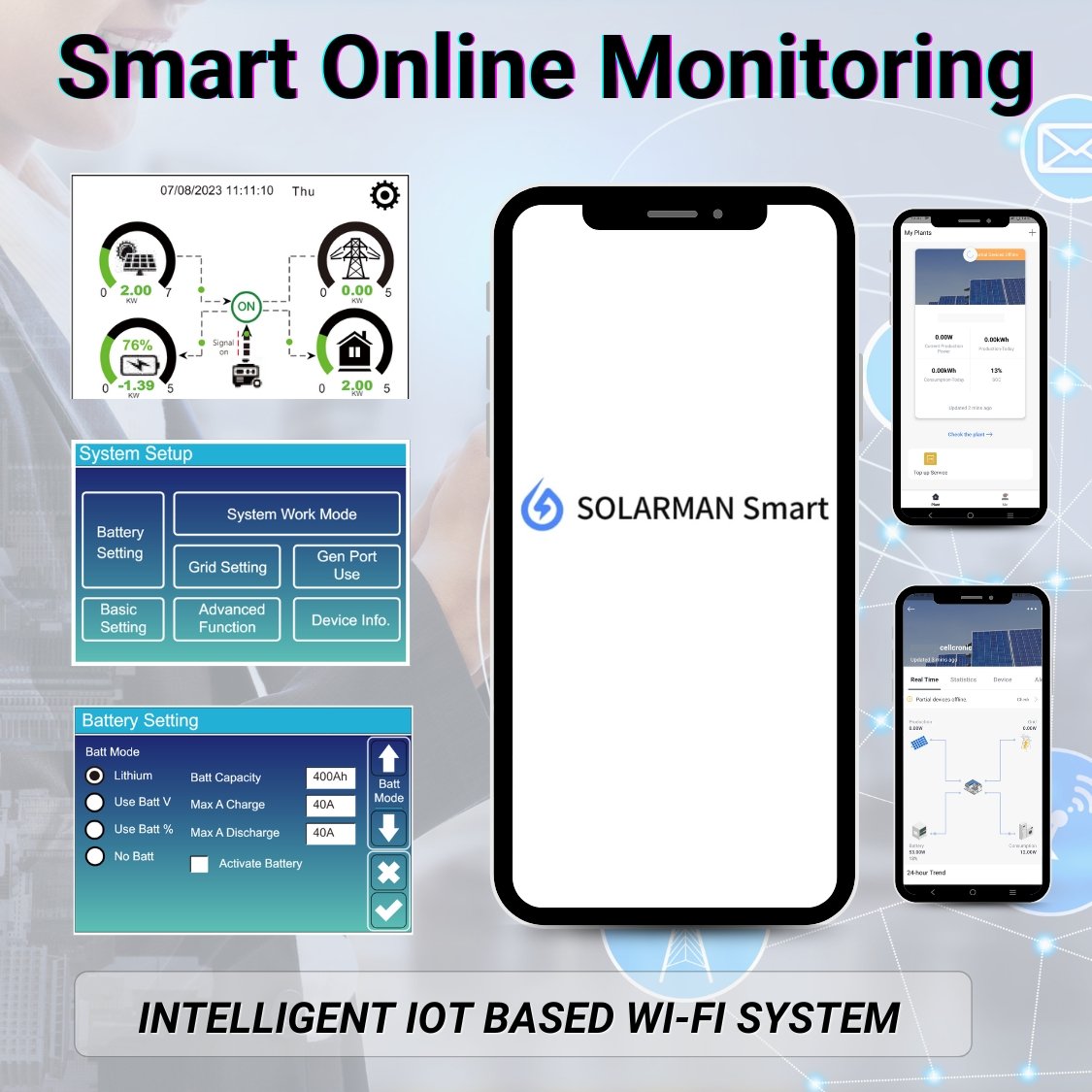

- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 17kg
- Inverter Dimension 330Wx433Hx229D
- 25 years design life.
| Galaxy 6G 5kw-48v EU Single Phase Hybrid Inverter | ||
| Battery Input Data | ||
| Battery Type | Lead–acid or Lithium–ion | |
| Battery Voltage Range (V) | 40~60V | |
| Max. Charging Current (A) | 120A | |
| Max. Discharging Current (A) | 120A | |
| Charging Curve | 3 Stages / Equalization | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li–lon Battery | Self-adaption to BMS | |
| PV STRING INPUT DATA | ||
| Max. DC Input Power(W) | 8000W | |
| PV input Voltage (V) | 370V (100V-500V) | |
| MPPT Range (V) | 150~425V | |
| Full Load DC Voltage Range | 240~425V | |
| Start-up Voltage (V) | 125V | |
| Max. operating PV input Current (A) | 13A+13A | |
| Max. Input short-Circuit Current (A) | 17A+17A | |
| No. of MPPT Trackers | 2 | |
| No. of Strings Per MPPT Tracker | 1+1 | |
| AC OUTPUT DATA | ||
| Rated AC Output and UPS Power(W) | 5000W | |
| Max. AC Output Power(W) | 5500W | |
| Peak Power (off-grid) | 2 times of rated power, 10S | |
| Rated AC Input/Output Current (A） | 22.7/21.7 | |
| Max AC Input/Output Current（A） | 25/23.9 | |
| Max. Continuous AC Passthrough(A) | 35A | |
| Power Factor | 0.8 leading to 0.8 lagging | |
| Output Frequency and Voltage | 50/60Hz;220/230/240Vac (Single Phase) | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |
| EFFICIENCY | ||
| Max. Efficiency | 97.60% | |
| Euro Efficiency | 96.50% | |
| MPPT Efficiency | 99.90% | |
| PROTECTION | ||
| DC Polarity Reverse Connection Protection | Integrated | |
| AC Output Overcurrent Protection | Integrated | |
| Thermal Protection | Integrated | |
| AC Output Overvoltage Protection | Integrated | |
| AC Output Short Circuit Protection | Integrated | |
| DC Component Monitoring | Integrated | |
| Overvoltage Load Drop Protection | Integrated | |
| Â Island Protection Monitoring, Earth Fault Detection | Integrated | |
| DC Input Switch | Integrated | |
| DC Terminal Insulation Impedance Monitoring | Integrated | |
| Residual Current (RCD) Detection | Integrated | |
| Surge Protection | DC Type ll / AC Type ll | |
| CERTIFICATION AND STANDARDS | ||
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105 | |
| Safety EMC | IEC/EN 61000-6-1/2/3/4, | |
| Safety Standard | Â IEC/EN 62109-1, IEC/EN 62109-2 | |
| GENERAL DATA | ||
| Operating Temperature Range(°C) | -40 to+60℃,＞45℃ Derating | |
| Cooling | Natural Cooling | |
| Noise(dB) | <30 db | |
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 17kg | |
| Size (mm) | 330*433*229（Excluding connectors and brackets） | |
| Protection Degree | IP65 | |
| Installation Style | Well-mounted | |
| Warranty | 5 Years/ 10 Years | |
