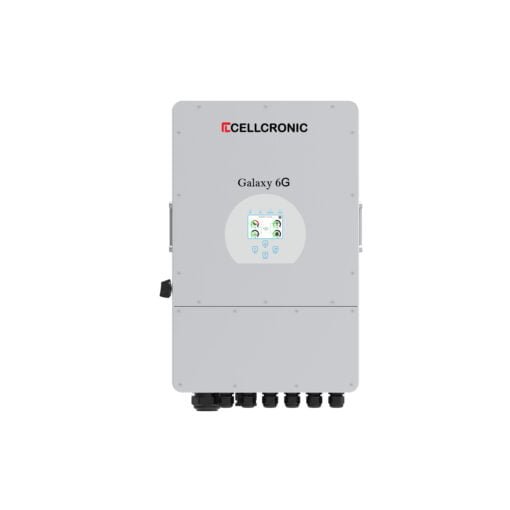

Galaxy 6G EU 8kw Three Phase Dual Mppt Hybrid Inverter
₹209,820.54 Exl GST
Galaxy 6G is a 6th generation inverter technology. It comes with loaded accessories like Battery wire, ACDC box, CT sensor, Battery temperature sensor, and communication cables. It supports high PV voltage (140~800vdc) for easy PV installation. We can connect 16 inverters in parallel for a big operation.
Share
Out of stock
Notify me when product is available
Colorful touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
8000W Maximum Load Capacity & 12000W Solar Capacity.
6 time period for battery Charging/ discharging.
Max. Charging/discharging current of 190A
Max. 10pcs parallel for on-grid and off-grid operation, Support multiple batteries parallel
5 year warranty and can be expendable up to 10 year.
Also works with generators
Key Specifications & Features
- AC couple to retrofifit existing solar system
- Works as On- grid and Off- Grid mode
- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 200V-650VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 38kg
- Inverter Dimension 656Wx420Hx256D
- 25 years design life.
| Model | Galaxy 6G EU 8kw-48v Three Phase | ||
| Battery Input Data | |||
| Battery Type | Lead–acid or Lithium–ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 190A | ||
| Max. Discharging Current (A) | 190A | ||
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Optional | ||
| Charging Strategy for Li–lon Battery | Self-adaption to BMS | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â PV STRING INPUT DATA | |||
| Max. DC Input Power(W) | 12000W | ||
| PVÂ input Voltage (V) | 550V (140V~800V) | ||
| MPPT Range (V) | 200V-650V | ||
| Start-up Voltage (V) | 160V | ||
| PV input Current (A) | 13+13 | ||
| No. of MPPT Trackers | 2 | ||
| No. of Strings Per MPPT Tracker | 1+1 | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â AC OUTPUT DATA | |||
| Rated AC Output and UPS Power(W) | 8000W | ||
| Max. AC Output Power(W) | 8000W | ||
| Peak Power (off-grid) | 2 times of rated power, 10S | ||
| AC Output Rated Current(A) | 15.2/14.5A | ||
| Max. AC Current(A) | 16.7/15.9A | ||
| Max. Continuous AC Passthrough(A) | 45A | ||
| Output Frequency and Voltage | 50/60Hz;230/400Vac (Three Phase) | ||
| Grid Type | Three Phase | ||
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â EFFICIENCY | |||
| Max. Efficiency | 97.60% | ||
| Euro Efficiency | 97.00% | ||
| MPPT Efficiency | 99.90% | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â PROTECTION | |||
| PV Arc Fault Detection | Integrated(Except European Type) | ||
| PV Input Lightning Protection | Integrated | ||
| Anti-island Protection | Integrated | ||
| PV String Input Reverse Polarity Protection | Integrated | ||
| Insulation Resistor Detection | Integrated | ||
| Residual Current Monitoring Unit | Integrated | ||
| Output Over Current Protection | Integrated | ||
| Output Shorted Protection | Integrated | ||
| Output Over Voltage Protection | Integrated | ||
| Surge Protection | DC Type ll / AC Type ll | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â CERTIFICATION AND STANDARDS | |||
| Grid Regulation | UL1741, IE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727 | ||
| Safety Regulation | IEC62109-1, IEC62109-2 | ||
| EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â GENERAL DATA | |||
| Operating Temperature Range(°C) | -40 to +60℃, >45℃ Derating | ||
| Cooling | Intelligent Air Cooling | ||
| Noise(dB) | ≤50 dB | ||
| Inverter Topology | Non-Isolated | ||
| Over Voltage Category | OVC II(DC), OVC III(AC) | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 38Kg | ||
| Size (mm) | 422×658×254 (Excluding Connectors and Brackets) | ||
| Protection Degree | IP65 | ||
| Installation Style | Well-mounted | ||
| Warranty | 5 Years/10 Years | ||
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic provides a standard warranty of 1 Year on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
