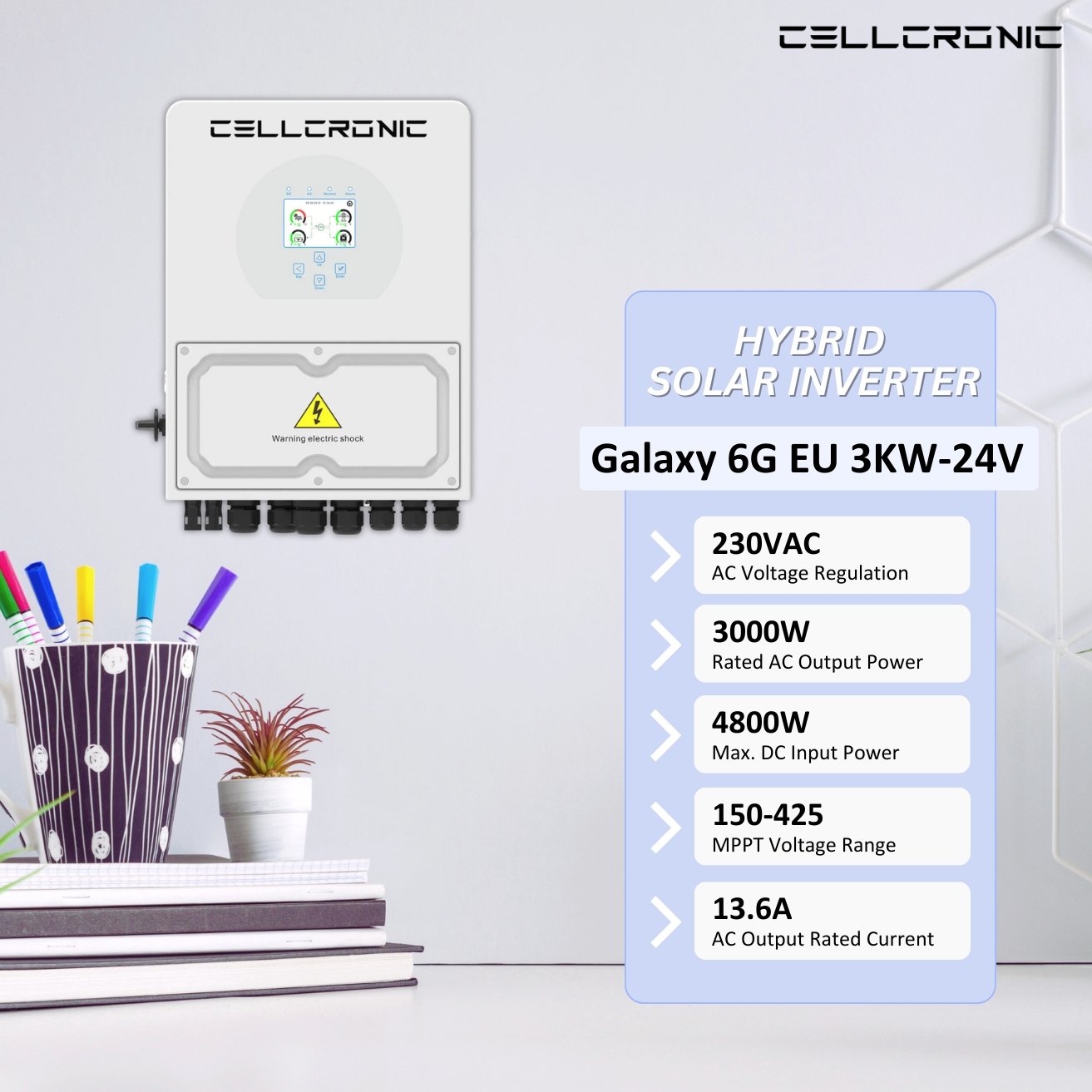

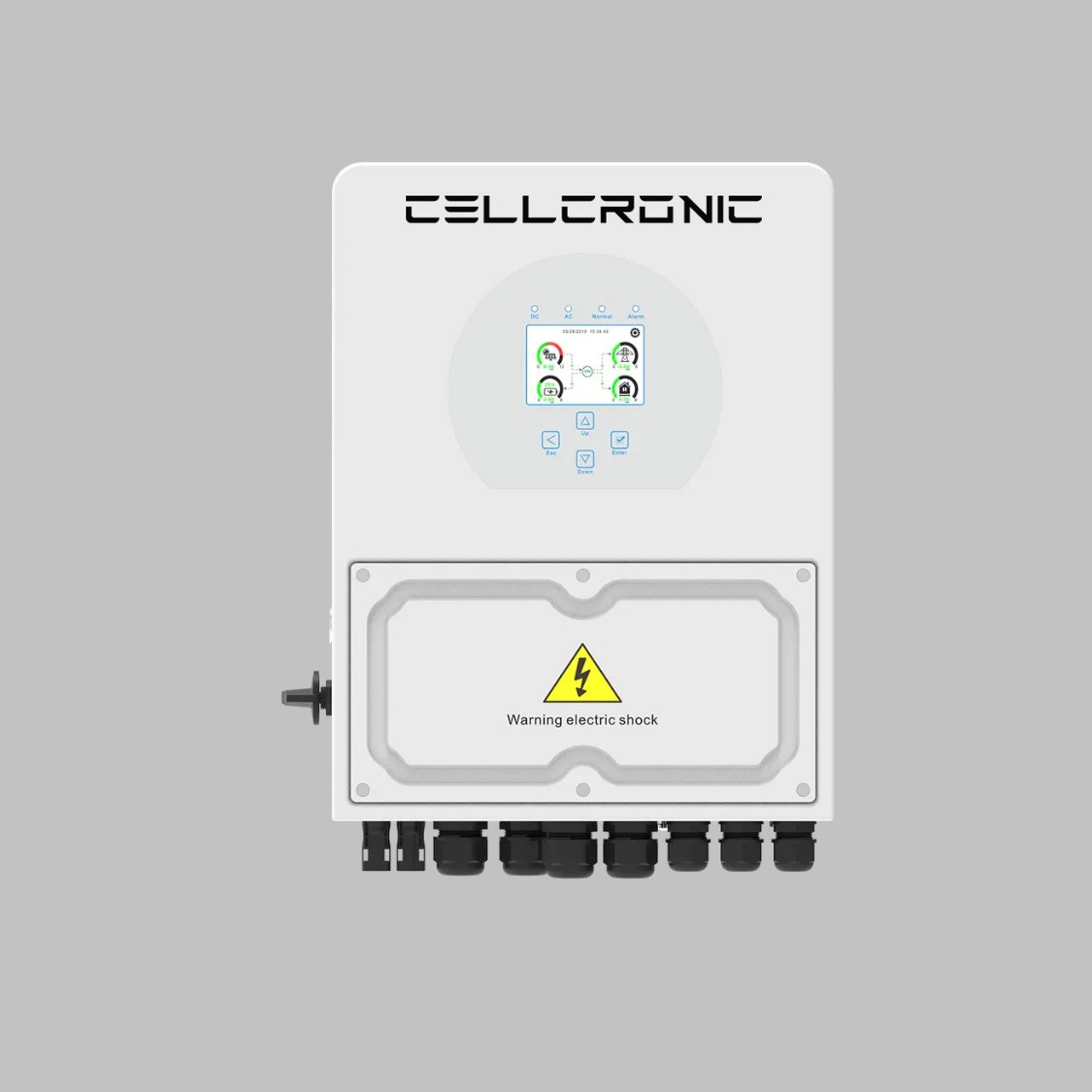

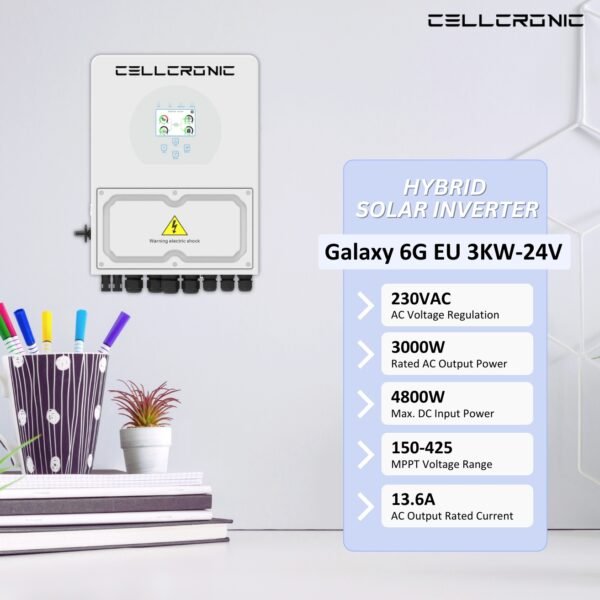

| Galaxy 6G 3kw-24v EU | |||
| Battery Input Data | |||

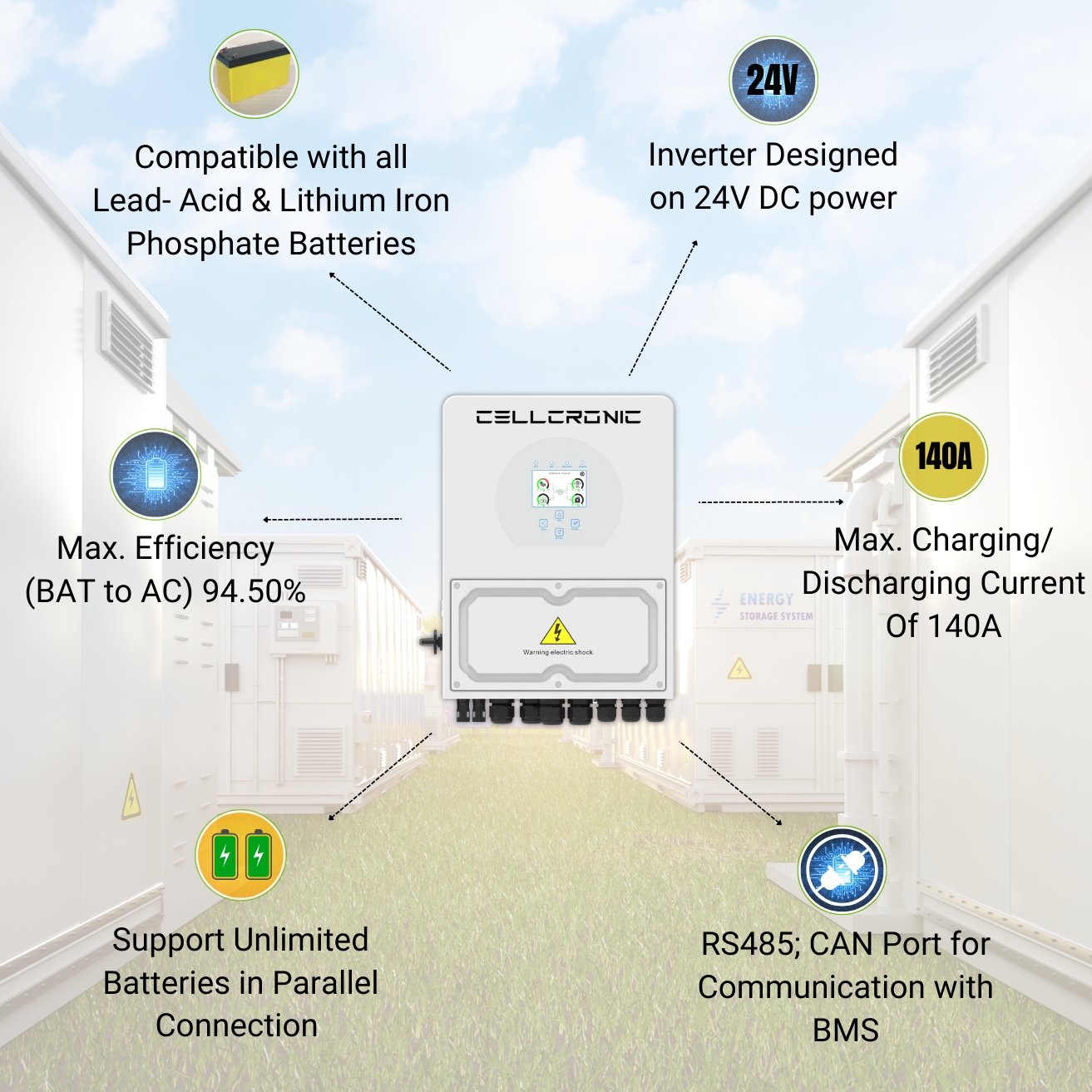

| Battery Type | Lead–acid or Lithium–ion | ||
| Battery Voltage Range (V) | 20~30V | ||
| Max. Charging Current (A) | 140A | ||
| Max. Discharging Current (A) | 140A | ||
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Yes | ||
| Charging Strategy for Li–lon Battery | Self-adaption to BMS | ||
| PV STRING INPUT DATA | |||
| Max. DC Input Power(W) | 3900W | ||
| PV lnput Voltage (V) | 370V | ||
| MPPT Range (V) | 150-425V | ||
| Full Load DC Voltage Range | 250~425V | ||
| Start–up Voltage (V) | 125V | ||
| PV lnput Current (A) | 13A | ||
| Max. PV Input Voltage (V) | 500 | ||
| No. of Strings Per MPPT Tracker | 1/1 | ||
| AC OUTPUT DATA | |||
| Rated AC Output and UPS Power(W) | 3000 | ||
| Max. AC Output Power(W) | 3300 | ||
| Peak Power (off grid) | 2 times of rated power, 10S | ||
| AC Output Rated Current(A) | 13.6/13 | ||
| Max. AC Current(A) | 15/14.3 | ||
| Max. Continuous AC Passthrough(A) | 35A | ||
| Power Factor | 0.8 leading to 0.8 lagging | ||
| Output Frequency and Volfage | 50/60Hz; 220/230Vac (single phase) | ||
| Grid Type | Single Phase | ||
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | ||
| EFFICIENCY | |||
| Max. Efficiency | 97.60% | ||
| Euro Efficiency | 96.50% | ||
| MPPT Efficiency | 99.90% | ||
| PROTECTION | |||
| PV Input Lightning Protection | Integrated | ||
| Anti-island Protection | Integrated | ||
| PV String Input Reverse Polarity Protection | Integrated | ||
| Insulation Resistor Detection | Integrated | ||
| Residual Current Monitoring Unit | Integrated | ||
| Output Over Current Protection | Integrated | ||
| Output Shorted Protection | Integrated | ||
| Output Over Voltage Protection | Integrated | ||
| Surge Protection | DC Type ll / AC Type ll | ||
| CERTIFICATION AND STANDARDS | |||
| Grid Regulation | EN50549-1, VDE0126, IEC61727, VDEN4105, G99, CEI0-21, NRS097, NBR16149/16150, RD1699 | ||
| SafetyRegulation | IEC62109-1/-2 | ||
| EMC | IEC62109-1/-2 | ||
| GENERAL DATA | |||
| Operating Temperature Range(°C) | -25~60°C,>45°C Derating | ||
| Cooling | Natural Cooling | ||
| Noise(db) | <30 db | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 14 | ||
| Size (mm) | 365.5W×470.5H×261D | ||
| Protection Degree | IP65 | ||
| Installation Style | Well-mounted | ||
| Warranty | 5 Years | ||
