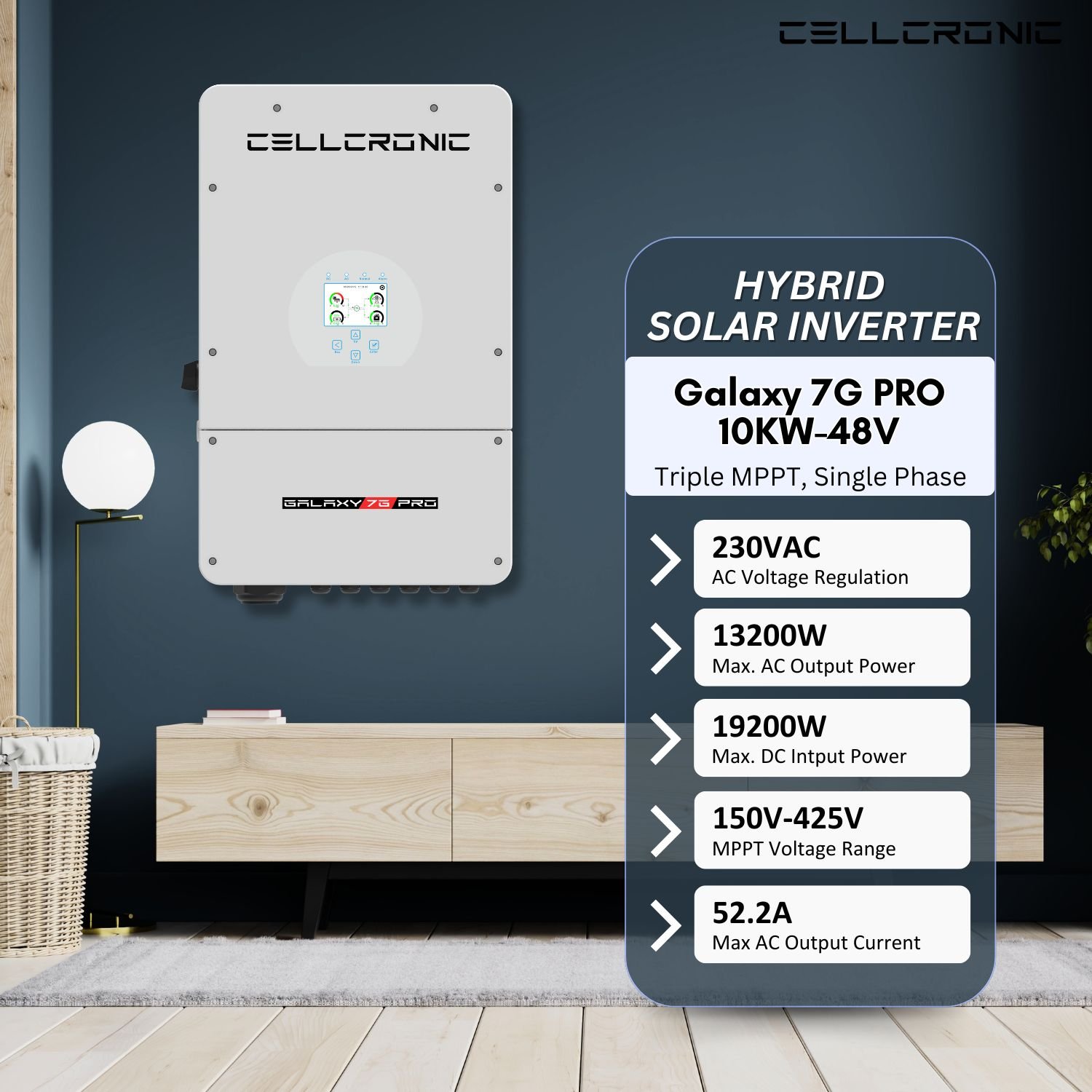

Galaxy 7G PRO 10kw 48v Single Phase Triple Mppt Hybrid Inverter
₹245,534.82 Exl GST
Galaxy 7G is a 7th generation inverter technology. It comes with loaded accessories like Battery wire, ACDC box, CT sensor, Battery temperature sensor, SPD, DC voltage Protection Device and communication cables. It supports high PV voltage (150~425vdc) for easy PV installation. We can connect 16 inverters in parallel for a big operation.
Share
Hurry! only 1 left in stock.
Colorful touch LCD, IP65 protection degree.
Pure sine wave output.
Compatible with solar Panel and wind turbine as well.
13200W Maximum Load Capacity & 19200W Solar Capacity.
6 time period for battery Charging/ discharging.
Max. Charging/discharging current of 250A
Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
6 year warranty and can be expendable up to 10 year.
Also works with generators
Key Specifications & Features
- AC couple to retrofifit existing solar system
- Works as On- grid and Off- Grid mode
- Inverter Designed on 48V DC power and compatible with all Lead- Acid & Lithium Iron Phosphate batteries.
- MPPT Voltage Range 150V-425VDC
- Intelligent IOT based Wi-Fi system,
- Dual Output Inverter for normal and heavy load
- Inverter weight 35.6kg
- Inverter Dimension 420Wx670Hx233D
- 30 years design life.
| Â Â Model | Galaxy 7G PRO 10kw 48v Single Phase Triple MPPT | ||
| Battery Input Data | |||
| Battery Type | Lead–acid or Lithium–ion | ||
| Battery Voltage Range (V) | 40~60V | ||
| Max. Charging Current (A) | 250A | ||
| Max. Discharging Current (A) | 250A | ||
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Optional | ||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â PV STRING INPUT DATA | |||
| Max. DC Input Power(W) | 19200W | ||
| PV input Voltage (V) | 500 | ||
| MPPT Range (V) | 150V-425V | ||
| Start-up Voltage (V) | 125 | ||
| PV input Current (A) | 26+26+26 | ||
| No. of MPPT Trackers | 3 | ||
| No. of Strings Per MPPT Tracker | 2+2+2 | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â AC OUTPUT DATA | |||
| Rated AC Input/Output Active Power（W） | 10000W | ||
| Max AC Input/Output Apparent Power （VA） | 13200W | ||
| Peak Power (off-grid) | 2 times of rated power, 10S | ||
| Rated AC Input/Output Current（A） | 54.6/52.2 | ||
| Max AC Input/Output Current (A） | 54.6/52.2 | ||
| Max. Continuous AC Passthrough(A) | 60A | ||
| Output Frequency and Voltage | 50/60Hz;230/220/230 0.85Un-1.1Un (Single Phase) | ||
| Grid Type | Single Phase | ||
| Current Harmonic Distortion | <3% (of nominal power) | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â EFFICIENCY | |||
| Max. Efficiency | 97.6% | ||
| Euro Efficiency | 96.5% | ||
| MPPT Efficiency | >99% | ||
| PROTECTION | |||
| DC Polarity Reverse Connection Protection | Integrated | ||
| AC Output Overcurrent Protection | Integrated | ||
| Thermal Protection | Integrated | ||
| AC Output Overvoltage Protection | Integrated | ||
| AC Output Short Circuit Protection | Integrated | ||
| DC Component Monitoring | Integrated | ||
| Overvoltage Load Drop Protection | Integrated | ||
| Â Island Protection Monitoring, Earth Fault Detection | Integrated | ||
| DC Input Switch | Integrated | ||
| DC Terminal Insulation Impedance Monitoring | Integrated | ||
| Residual Current (RCD) Detection | Integrated | ||
| Surge Protection | DC Type ll / AC Type ll | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â CERTIFICATION AND STANDARDS | |||
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 | ||
| Safety Regulation | IEC/EN 61000-6-1/2/3/4 | ||
| EMC | IEC/EN 62109-1, IEC/EN 62109-2 | ||
| Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â GENERAL DATA | |||
| Operating Temperature Range(°C) | -40 to +60℃, >45℃ Derating | ||
| Cooling | Intelligent Air Cooling | ||
| Permissible Ambient Humidity | 0~100% | ||
| Permissible Altitude | 2000m | ||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) | ||
| Noise(dB) | <45 | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 35.6 | ||
| Size (mm) | 420×670×233 (Excluding Connectors and Brackets) | ||
| Protection Degree | IP65 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 6 Years/10 Years(optional) | ||
Frequently Asked
Questions
Installation time varies based on the complexity of your setup, but typically, it takes a professional installer a few hours.
Yes, Cellcronic inverters are compatible with solar panels, allowing you to harness solar energy for your power needs.
Cellcronic offers 2 to 6 years warranty on its inverters, ensuring peace of mind for customers.
Yes, Cellcronic inverters are designed to meet the needs of both residential and commercial applications, offering reliable performance in various settings.
